Home>> Amplifier>> AMM-7200UC

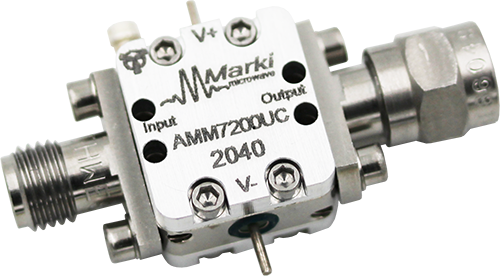

AMM-7200UC

Connectorized from Marki Microwave

Amplifier, Driver, 12 to 46 GHz, 18 dB, +21.5 dBm, Connectorized

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part Number: AMM-7200UC
Manufacturer: Marki Microwave
Type: Broadband, LO Drive
Frequency Min: 12 GHz
Frequency Max: 46 GHz
P1dB: 19 dBm
Psat: 21.5 dBm
Gain: 18 dB
IP3: 29 dBm
Noise Figure: 6.3 dB
Package: Connectored
Return Loss Input: 19 dB
Return Loss Output: 18 dB
Process: GaAs

No Content Available

Part Function	Part Number	Description
Complementary Product	AMM-6702CH Marki Microwave	Amplifier, Broadband, 21 to 55 GHz, 24 dB, +21 dBm, Chip
Complementary Product	AMM-6702SM Marki Microwave	Amplifier, LO Driver, 20 to 50 GHz, 24 dB, +19 dBm, SMT
Complementary Product	AMM-6702UC Marki Microwave	Amplifier, Broadband, 21 to 55 GHz, 24 dB, +21 dBm, Connectorized
Complementary Product	AMM-6702UC5 Marki Microwave	Amplifier, Broadband, 21 to 55 GHz, 24 dB, +21 dBm, Connectorized, 5V Positive Only Sequenced Model
Complementary Product	AMM-7199CH Marki Microwave	Amplifier, Driver, 11 to 38 GHz, 20.5 dB, +21 dBm, Chip
Complementary Product	AMM-7199SM Marki Microwave	Amplifier, LO Driver, 11 to 38 GHz, 21 dB, +21 dBm, SMT, Discontinued
Complementary Product	AMM-7199UC Marki Microwave	Amplifier, Driver, 11 to 38 GHz, 20.5 dB, +21 dBm, Connectorized
Complementary Product	AMM-7200CH Marki Microwave	Amplifier, Driver, 12 to 46 GHz, 18 dB, +21.5 dBm, Chip
Complementary Product	AMM-7200SM Marki Microwave	Amplifier, LO Driver, 12 to 46 GHz, 16 dB, +21 dBm, SMT
Complementary Product	AMM-7203CH Marki Microwave	Amplifier, LNA, 30 to 60 GHz, 11.5 dB, +16 dBm, Chip
Complementary Product	AMM-7203UC Marki Microwave	Amplifier, Driver, 30 to 60 GHz, 11.5 dB, +16 dBm, Connectorized
Complementary Product	AMM-7210CH Marki Microwave	Amplifier, Driver, 22 to 57 GHz, 14.5 dB, +20.5 dBm, Chip
Complementary Product	AMM-7210SM Marki Microwave	Amplifier, LO Driver, 25 to 50 GHz, 13 dB, +21 dBm, SMT
Complementary Product	AMM-7210UC Marki Microwave	Amplifier, Driver, 22 to 57 GHz, 14.5 dB, +20.5 dBm, Connectorized

Technical Inquiry Request for AMM-7200UC Amplifier

Fields marked with * are required.

Product Specifications For AMM-7200UC Amplifier

Part Number: AMM-7200UC Manufacturer: Marki Microwave Product Description: Amplifier, Driver, 12 to 46 GHz, 18 dB, +21.5 dBm, Connectorized

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

On Order

by 5/29/2026

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$1215.45

5 - 9

$1143.95

Request a Pricing Quote for greater quantities
