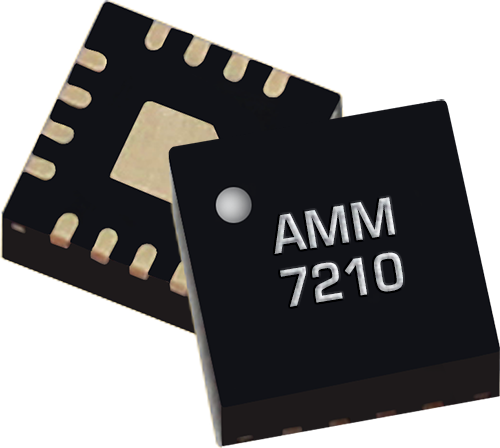

Home>> Amplifier>> AMM-7210SM

AMM-7210SM

Surface Mount from Marki Microwave

Amplifier, LO Driver, 25 to 50 GHz, 13 dB, +21 dBm, SMT

Status: Discontinued | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part Number: AMM-7210SM
Manufacturer: Marki Microwave
Export Status:
Type: Broadband, LO Drive
Frequency Min: 25 GHz
Frequency Max: 50 GHz
P1dB: 20 dBm
Psat: 23 dBm
Gain: 13 dB
IP3: 26 dBm
Supply Voltage \ Vd Min: 2 V
Supply Voltage \ Vd Max: 4 V
Noise Figure: 5.6 dB
Return Loss Input: 14 dB
Return Loss Output: 16 dB
Process: GaAs

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVAL-AMM-7210SM Marki Microwave	Evaluation Board for AMM-7210SM
Replacement	AMM-8211PSM Marki Microwave	Amplifier, Driver, 22 to 57 GHz, 13 dB, +19 dBm, SMT

Technical Inquiry Request for AMM-7210SM Amplifier

Fields marked with * are required.

Product Specifications For AMM-7210SM Amplifier

Part Number: AMM-7210SM Manufacturer: Marki Microwave Product Description: Amplifier, LO Driver, 25 to 50 GHz, 13 dB, +21 dBm, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$213.42

5 - 9

$174.62

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices

Description	Units Per Format	Available

Replacement Part(s) Suggested

The part AMM-7210SM is discontinued, below is the suggested replacement part.

Part Number	Manufacturer	Description
AMM-8211PSM	Marki Microwave	Amplifier, Driver, 22 to 57 GHz, 13 dB, +19 dBm, SMT

Description	Units Per Format	Available

The part AMM-7210SM is discontinued, would you like to check out the suggested replacement part?

Part Function	Part Number	Description
Replacement	AMM-8211PSM Marki Microwave	Amplifier, Driver, 22 to 57 GHz, 13 dB, +19 dBm, SMT
