Home>> Amplifier>> RDC40D10B

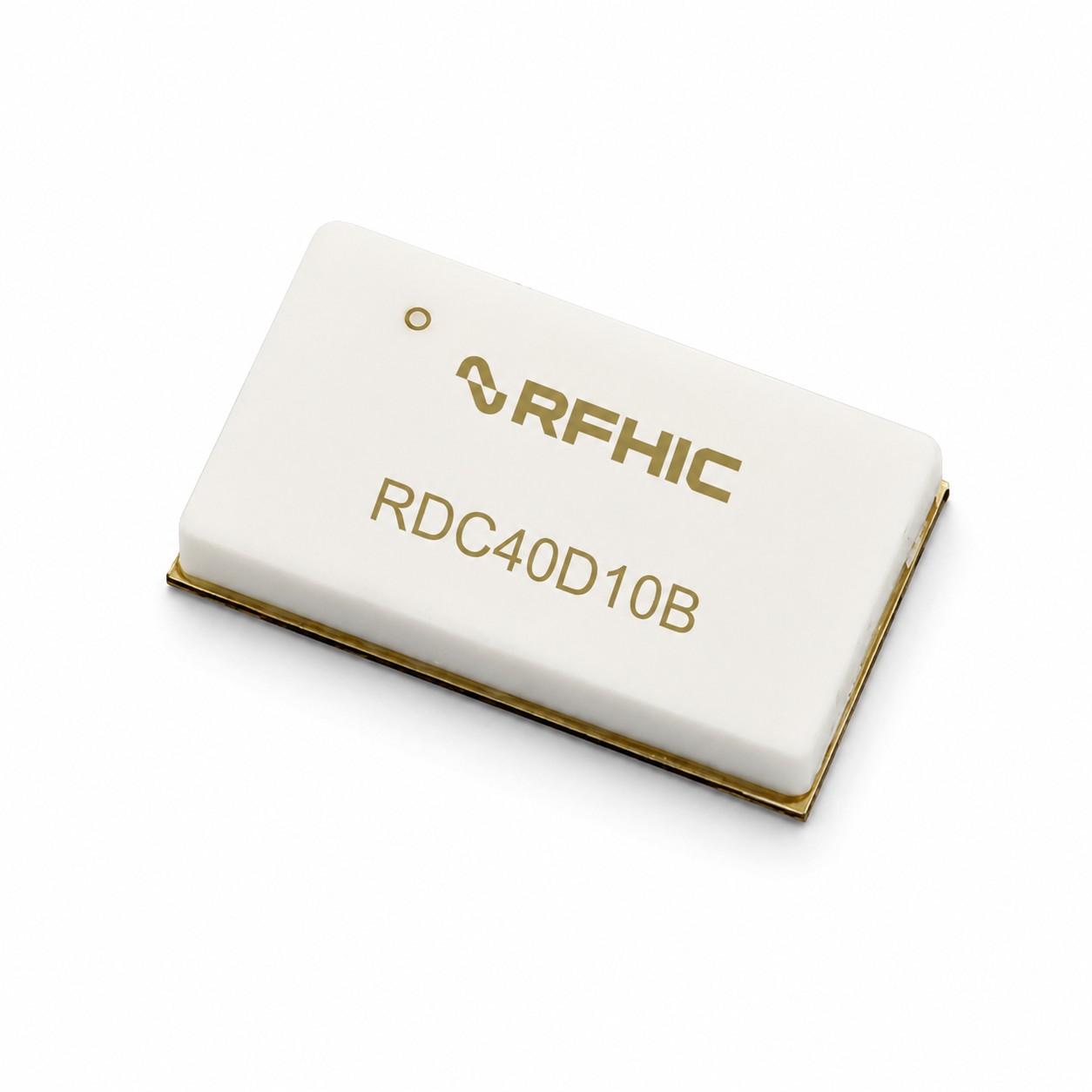

RDC40D10B

Amplifier from RFHIC Corporation

Amplifier, Hybrid, 2 to 6 GHz, 12.6 W Psat, 16 dB, 28 V, PP-3G

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The RFHIC RDC40D10B is a 2 to 6 GHz, 12.6 watt GaN Hybrid Power Amplifier Module designed for commercial radar, jammer radar, and military radar system applications. The RDC40D10B is designed with RFHIC’s state of the art gallium-nitride (GaN) on SiC HEMT, providing excellent thermal stability and high breakdown voltage.

Features and Benefits:

Ultra-Wideband: One module spans S and C band
High Power Density: 12.6 watts saturated output in a compact 8 x 14 x 2.6 mm package
Drop-In Integration: 50 ohm fully matched I/O for design simplification

Applications:

Commercial Radar System
Jammer Radar System
Military Radar System

Part Number: RDC40D10B
Manufacturer: RFHIC Corporation
Type: Hybrid Amplifiers
Frequency Min: 2 GHz
Frequency Max: 6 GHz
Psat: 41 dBm
Gain: 16 dB
Supply Voltage \ Vd Max: 28 V
Power Added Efficiency: 35 %
Process: GaN

No Content Available

Part Function	Part Number	Description
Evaluation Board	RDC40D10B/RFPOWERDEMO RFHIC Corporation	Evaluation Board for RDC40D10B

Technical Inquiry Request for RDC40D10B Amplifier

Fields marked with * are required.

Product Specifications For RDC40D10B Amplifier

Part Number: RDC40D10B Manufacturer: RFHIC Corporation Product Description: Amplifier, Hybrid, 2 to 6 GHz, 12.6 W Psat, 16 dB, 28 V, PP-3G

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

On Order

by 9/14/2026

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$250.00

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
