Home>> Amplifier>> QPL9098

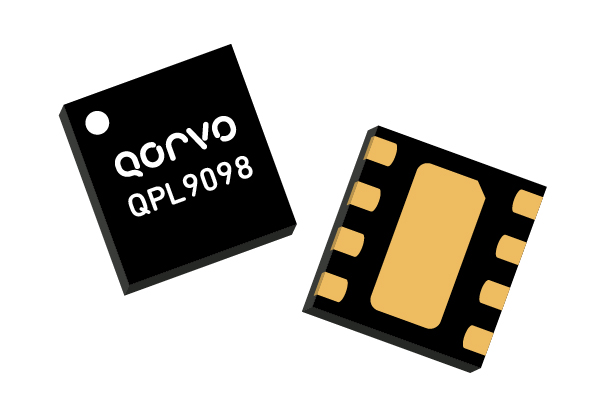

QPL9098

Model Number: QPL9098

Amplifier from Qorvo

Amplifier, LNA, 4.0 to 6.0 GHz, 19 dB, 16 dBm, DFN, 2 x 2 mm

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The QPL9098 is a high-linearity, ultra-low noise gain block amplifier with a bypass mode functionality integrated in the product. At 5.5 GHz, the amplifier typically provides 19 dB gain, +32 dBm OIP3, and 1.3 dB noise figure while drawing 68 mA current from a +4.2 V supply.

The QPL9098 is internally matched using a high performance E-pHEMT process and only requires four external components for operation from a single positive supply: an external RF choke and blocking/bypass capacitors. This low noise amplifier contains an internal active bias to maintain high performance over temperature.

The QPL9098 is optimized for the 4.0 - 6.0 GHz frequency band and is targeted for wireless infrastructure. The QPL9098 is packaged in a 2 x 2 mm DFN.

Part Number: QPL9098
Manufacturer: Qorvo
Type: Amplifiers
Min Frequency: 4 GHz
Max Frequency: 6 GHz
P1dB Typ: 16 dBm
Gain Typ: 19 dB
Noise Figure Typ: 1.3 dB
Package: SMT
Package Style: DFN 2x2mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	QPL9098EVB-01 Qorvo	Evaluation Board for QPL9098

Technical Inquiry Request for QPL9098 Amplifier

Fields marked with * are required.

Product Specifications For QPL9098 Amplifier

Part Number: QPL9098 Manufacturer: Qorvo Product Description: Amplifier, LNA, 4.0 to 6.0 GHz, 19 dB, 16 dBm, DFN, 2 x 2 mm

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

858

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$9.31

25 - 99

$7.31

100 - 249

$5.77

250 - 499

$4.76

500 - 999

$4.02

Request a Pricing Quote for greater quantities
