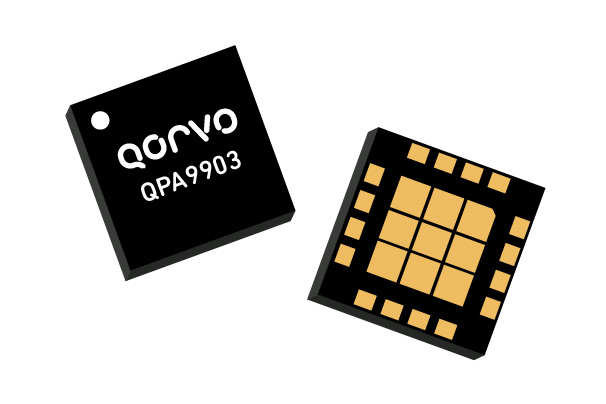

QPA9903

Model Number: QPA9903

Amplifier from Qorvo

Amplifier, Power, GaAs, 1.805 to 1.88 GHz, 32 dB, 28 dBm, 5 x 5 mm, 16-pin, SMT

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The Qorvo QPA9903 is a high-efficiency, linearizable power amplifier targeting Band 3 small-cell wireless infrastructure systems. Using InGaP/GaAs HBT technology, the product delivers high efficiency of 35% at +28dBm average output power while providing excellent DPD linearized ACPR of -50dBc for signal bandwidths of up to 60MHz.

The QPA9903 is housed in a 5x5mm SMT package. It is pin-to-pin compatible to QPA9908 (band 8 high-efficiency small cell PA).

Part Number: QPA9903
Manufacturer: Qorvo
Type: Amplifiers
Min Frequency: 1.805 GHz
Max Frequency: 1.88 GHz
P1dB Typ: 28 dBm
Gain Typ: 32 dB

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	QPA9903EVB01 Qorvo	Evaluation Board for QPA9903
Complementary Product	QPA9901 Qorvo	Amplifier, 2.11 to 2.17 GHz, 36.5 dB, 28 dBm, SMT, 5 x 5 mm
Complementary Product	QPA9907 Qorvo	RF Amplifier, Power, 2.5 to 2.7 GHz, 35 dB, 28 dBm, 5 x 5 mm
Complementary Product	QPA9908 Qorvo	Amplifier, Power, GaAs/InGaP,.925 to .96 GHz, 33 dB, 28 dBm, SMT,5 x 5 mm
Complementary Product	QPA9909 Qorvo	RF Amplifier, .758 to .798 GHz, 31 dB, 29 dBm, 5 x 5 mm , SMT package
Complementary Product	QPA9940 Qorvo	RF Amplifier, Power, 2.3 to 2.4 GHz, 30 dB, 28 dBm, 5 x 5 mm
Complementary Product	QPA9942 Qorvo	Amplifier, InGaP/ GaAs, 3.4 to 3.710 GHz, 30 dB, 36 dBm, 16 Pad, 5 x 5 mm

Technical Inquiry Request for QPA9903 Amplifier

Fields marked with * are required.

Product Specifications For QPA9903 Amplifier

Part Number: QPA9903 Manufacturer: Qorvo Product Description: Amplifier, Power, GaAs, 1.805 to 1.88 GHz, 32 dB, 28 dBm, 5 x 5 mm, 16-pin, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$21.74

25 - 99

$17.07

100 - 249

$13.47

250 - 499

$11.11

500 - 999

$9.39

Request a Pricing Quote for greater quantities
