Home>> RF Power Divider/Combiner>> PD-0R413

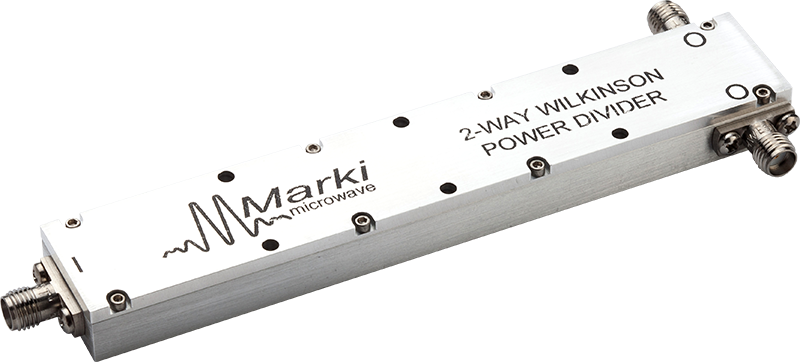

PD-0R413

Connectorized from Marki Microwave

Power Divider, 1:2, 400 to 13200 MHz, 1 or 10 W, 1 dB IL, Connectorized

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Part Number: PD-0R413
Manufacturer: Marki Microwave
Type: 2-Way
Min Frequency: 400 MHz
Max Frequency: 13200 MHz
CW Power: 1 W
Insertion Loss: 1 dB
Package Style: Connectorized
Connector Type: SMA(f)
Isolation (Typ) : 24 dB
VSWR Typ: 1.5:1

No Content Available

Technical Inquiry Request for PD-0R413 RF Power Divider/Combiner

Fields marked with * are required.

Product Specifications For PD-0R413 RF Power Divider/Combiner

Part Number: PD-0R413 Manufacturer: Marki Microwave Product Description: Power Divider, 1:2, 400 to 13200 MHz, 1 or 10 W, 1 dB IL, Connectorized

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$863.04

5 - 9

$812.27

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
