Home>> RF Mixer>> MM2-0530LBH

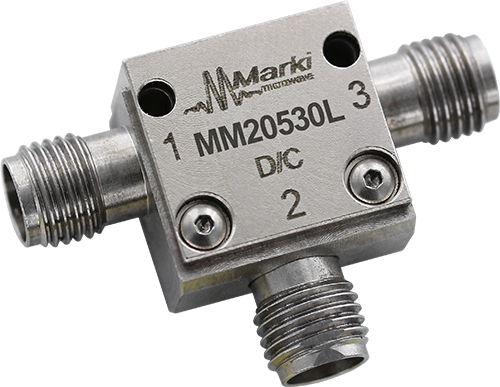

MM2-0530LBH

Connectorized from Marki Microwave

RF Mixer, MMIC, Triple-Balanced, 5000 to 30000 MHz (RF/LO), +9 to +17 dBm (LO Drive), Bullet Housing (LBH)

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MM2-0530LBH is a passive MMIC triple balanced mixer. It features a broadband IF port that spans from 2 to 20 GHz, and has excellent spurious suppression. GaAs MMIC technology improves upon the previous generation of hand assembled, hybrid M2 triple balanced mixers with improved isolations, unit-to-unit repeatability and reliability. The MM2-0530L is available as a wire bondable chip or connectorized bullet housing package.

Part Number: MM2-0530LBH
Manufacturer: Marki Microwave
Type: Triple Balanced
RF Frequency Range Min: 5000 MHz
RF Frequency Range Max: 30000 MHz
Operating LO Frequency Range Min: 5000 MHz
Operating LO Frequency Range Max: 30000 MHz
LO Drive Min: 9 dBm
LO Drive Max: 17 dBm
IF Frequency Min: 2000 MHz
IF Frequency Max: 20000 MHz
IIP3: 15 dBm
Isolation LO-RF: 42 dB
Isolation LO-IF: 46 dB
Isolation RF-IF: 45 dB
Package: Connectorized

No Content Available

Part Function	Part Number	Description
Evaluation Board	ADM1-8007APC Marki Microwave	Amplifier, LO Driver, 2 to 40 GHz, 22 dB, +21 dBm, Connectorized

Technical Inquiry Request for MM2-0530LBH RF Mixer

Fields marked with * are required.

Product Specifications For MM2-0530LBH RF Mixer

Part Number: MM2-0530LBH Manufacturer: Marki Microwave Product Description: RF Mixer, MMIC, Triple-Balanced, 5000 to 30000 MHz (RF/LO), +9 to +17 dBm (LO Drive), Bullet Housing (LBH)

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$1028.87

5 - 9

$968.35

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
