GRF0135

Amplifier from Guerrilla RF

GaN-on-SiC, 150W, 50V, 6x3 DFN-14

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

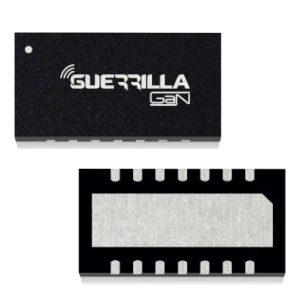

The GRF0135 is a 150W (P3dB) unmatched discrete GaN-on-SiC HEMT which operates from DC to 3.2 GHz on a 50V supply rail. The wide bandwidth makes the GRF0135 suitable for a variety of applications including cellular infrastructure, radar, communications, and test instrumentation, and can support both linear and pulse operations. The device is housed in an industry-standard 6 x 3 mm surface mount DFN-14 plastic package. Lead free and RoHS compliant.

Part Number: GRF0135
Manufacturer: Guerrilla RF
Type: RF Power MMIC
Frequency Min: 0 GHz
Frequency Max: 3.2 GHz
Psat: 51.8 dBm
Gain: 13.8 dB
Supply Voltage \ Vd Max: 50 V
Process: GaN on SiC

No Content Available

Technical Inquiry Request for GRF0135 Amplifier

Fields marked with * are required.

Product Specifications For GRF0135 Amplifier

Part Number: GRF0135 Manufacturer: Guerrilla RF Product Description: GaN-on-SiC, 150W, 50V, 6x3 DFN-14

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

5 - 9

$271.41

10 - 24

$226.18

25 - 49

$202.55

50 - 99

$180.94

100 - 499

$173.67

500 - 1499

$156.77

Request a Pricing Quote for greater quantities
