Home>> RF Coupler>> FPC06074

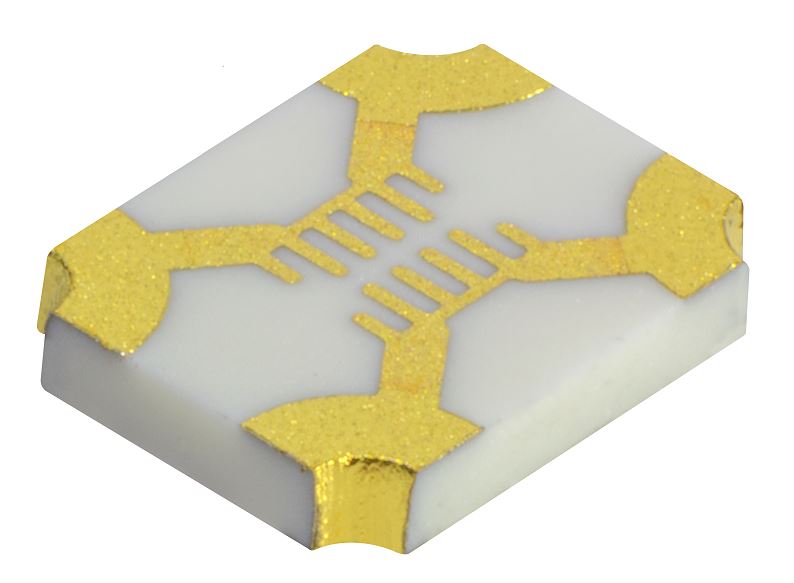

FPC06074

RF Coupler from Knowles — DLI – Dielectric Laboratories

Directional Coupler, 8 to 12GHz, 10db

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

DLI introduces its new high frequency surface mountable catalog direction couplers. These couplers incorporate DLI’s high dielectric
ceramic materials which provide small size and minimal performance variation over temperature. The components are well matched for monitoring incident and reflected power.

FEATURES
Small Size
Fully Shielded Component
Solder Surface Mount Package
Moisture Sensitivity Level: MSL1
Frequency Stable over Temperature
Operating & Storage Temp: -55˚C to +125˚C
Characteristic Impedance: 50Ω

Part Number: FPC06074
Manufacturer: Knowles — DLI – Dielectric Laboratories
Type: Directional
Min Frequency: 8000 MHz
Max Frequency: 12000 MHz
Coupling Factor: 10 dB
Package Style: SMT
Insertion Loss: 0.5 dB

No Content Available

Technical Inquiry Request for FPC06074 RF Coupler

Fields marked with * are required.

Product Specifications For FPC06074 RF Coupler

Part Number: FPC06074 Manufacturer: DLI – Dielectric Laboratories, Inc. (Knowles) Product Description: Directional Coupler, 8 to 12GHz, 10db
