Home>> RF Attenuator - Fixed>> XRA10AA2SES

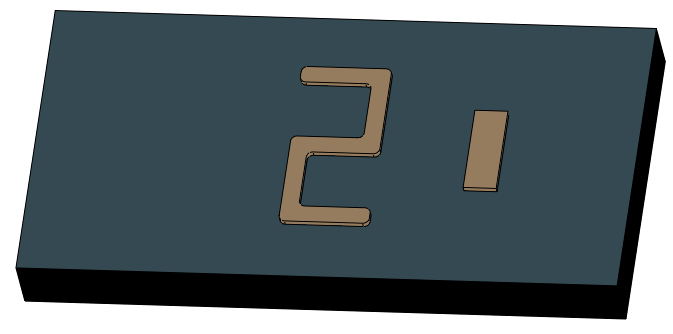

XRA10AA2SES

RF Attenuator - Fixed from TTM Technologies — Anaren

Attenuator, Fixed, Surface Mount, DC to 6 GHz, 2dB, 10 W, AlN, RoHS

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

Description:

The XRA10AA2SES from TTM Technologies (formerly Anaren Microwave) is a high performance, 2dB, 10 Watt Aluminium Nitride surface mount attenuator intended to be a RoHS compliant, cost competitive alternative to Beryllium Oxide. This attenuator series is particularly well suited to LTE and 5G sub-6 GHz frequency bands as well as other low power transmitter stages, including isolation between inter-stage matching and for directional couplers.

Part Number: XRA10AA2SES
Manufacturer: TTM Technologies — Anaren
Frequency Min: 0 GHz
Frequency Max: 6 GHz
dB Value: 2 dB
Power Handling: 10 W
Material: AlN

	Tariff Notice	Product may be included on Section 301 Tariff List and subject to applicable tariff charges.
	S-Parameter Link	S-Parameter File
	RoHS XML	RoHS XML File
	Mounting Footprint	Mounting Footprint Drawing

Technical Inquiry Request for XRA10AA2SES RF Attenuator - Fixed

Fields marked with * are required.

Product Specifications For XRA10AA2SES RF Attenuator - Fixed

Part Number: XRA10AA2SES Manufacturer: TTM Technologies Product Description: Attenuator, Fixed, Surface Mount, DC to 6 GHz, 2dB, 10 W, AlN, RoHS

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1000 - 4999

$5.573

5000 - 49999

$4.551

50000 - 99000

$3.775

Request a Pricing Quote for greater quantities

Product Notices

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.
