X4C25L1-03G

RF Coupler from TTM Technologies — Anaren

Coupler, Hybrid, 2.2 to 2.8 GHz, 3dB, 10 W

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

Description:

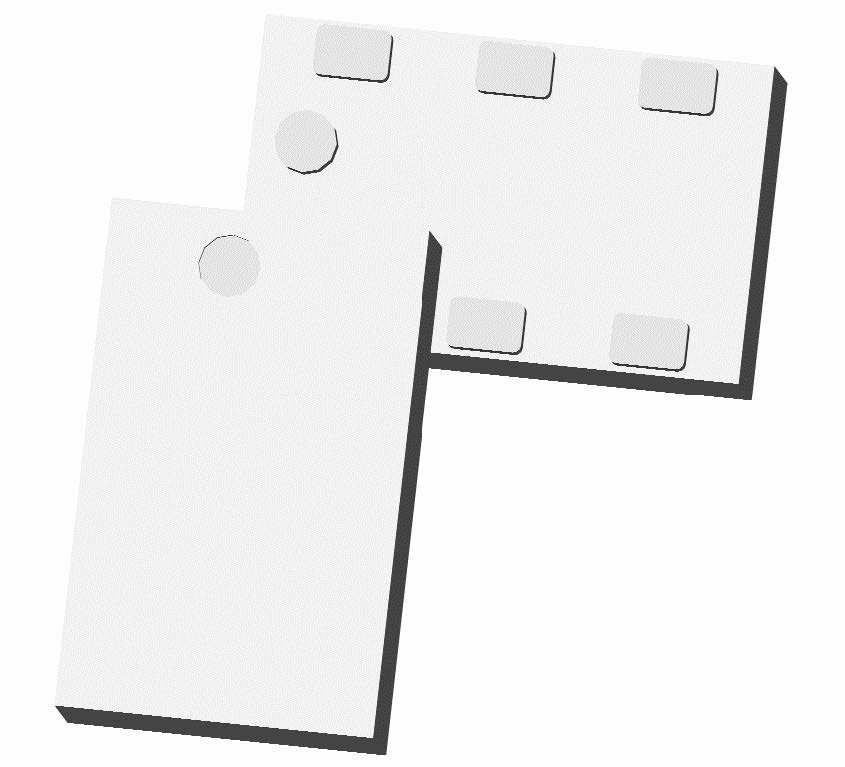

The X4C25L1-03G from TTM Technologies (formerly Anaren Microwave) is a low profile, high performance 3dB hybrid coupler in a new easy to use, manufacturing friendly surface mount package. It is designed for 5G applications. The X4C40L1-03G is available on tape and reel for pick and place high volume manufacturing. All of the Xinger components are constructed from ceramic filled PTFE composites, which possess excellent electrical and mechanical stability. All parts have been subjected to rigorous qualification testing and units are 100% RF tested. Produced in an ENIG final finish.

Part Number: X4C25L1-03G
Manufacturer: TTM Technologies — Anaren
Type: Hybrid
Min Frequency: 2200 MHz
Max Frequency: 2800 MHz
Coupling Factor: 3 dB
CW Power: 3 W
Package Style: SMT
Insertion Loss: 0.25 dB
Isolation Typ: 23 dB
Amplitude Balance Typ: 0.5 ±dB
Phase Balance Typ: 5 ± °C

S-Parameter Link
