Home>> RF Switch>> TGS2353-2

TGS2353-2

Model Number: TGS2353-2

RF Switch from Qorvo

RF Switch, SPDT, 0.5- 18 GHz, 1.5 dB IL, -30 dB Isolation, 41 dBm Pwr Rating, GaN, DIE

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

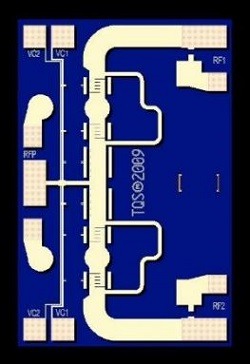

Qorvo’s TGS2353-2 is a single-pole, double-throw (SPDT) reflective switch fabricated on Qorvo's QGaN25 0.25um GaN on SiC production process.

Operating from 0.5 to 18 GHz, the TGS2353-2 typically provides up to 10W input power handling at control voltages of 0/-40 V. This switch maintains low insertion loss of 1.5 dB or less, and high isolation of 30 dB typical.

The TGS2353-2 performance allows it to be used in a variety of applications across commercial and military markets; low and high power.

Lead-free and RoHS compliant.

Part Number: TGS2353-2
Manufacturer: Qorvo
Type >>RF Switch: Single Pole
Function: SPDT
Frequency Range Min: 500 MHz
Frequency Range Max: 18000 MHz
Insertion Loss Min: 1.5 dB
Insertion Loss Max: 1.5 dB
Isolation Min: 30 dB
Isolation Max: 30 dB
Power Rating: 40 dBm
Package: DIE

No Content Available

Technical Inquiry Request for TGS2353-2 RF Switch

Fields marked with * are required.

Product Specifications For TGS2353-2 RF Switch

Part Number: TGS2353-2 Manufacturer: Qorvo Product Description: RF Switch, SPDT, 0.5- 18 GHz, 1.5 dB IL, -30 dB Isolation, 41 dBm Pwr Rating, GaN, DIE

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

On Order

by 11/6/2025

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$153.72

25 - 99

$104.24

100 - 249

$82.47

250 - 499

$77.85

Request a Pricing Quote for greater quantities
