Home>> CATV Amplifier>> RFPD3580

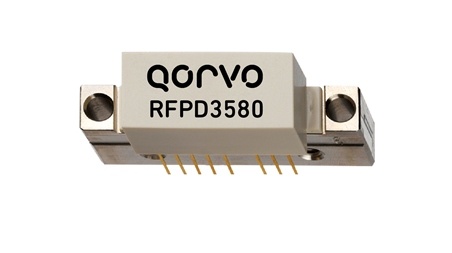

RFPD3580

Model Number: RFPD3580

CATV Amplifier from Qorvo

Amplifier, CATV, 45- 1218 MHz, 22.5 dB, SOT-115J

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The RFPD3580 is a Hybrid Power Doubler amplifier module. The part employs GaAs pHEMT die and GaN HEMT die and operates from 45MHz to 1218MHz. It provides extremely high output up to 76.8dBmV composite power or 67dBmV virtual level. DC current as well as supply voltage of the device can be externally adjusted for optimum distortion performance versus power consumption over a wide range of output level.

Part Number: RFPD3580
Manufacturer: Qorvo
Frequency Min: 50 MHz
Frequency Max: 1220 MHz
Gain: 24 dB
Supply Voltage\Vd: 34 V
Id: 540 mA
Noise Figure: 3.5 dB
CTB: -80 dB
Xmod: -75 dB
CSO: -80 dB
Package: SOT-115J

No Content Available

Technical Inquiry Request for RFPD3580 CATV Amplifier

Fields marked with * are required.

Product Specifications For RFPD3580 CATV Amplifier

Part Number: RFPD3580 Manufacturer: Qorvo Product Description: Amplifier, CATV, 45- 1218 MHz, 22.5 dB, SOT-115J

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

630

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 24

$118.75

25 - 99

$101.42

100 - 249

$87.90

250 - 499

$76.07

500 - 999

$65.50

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
