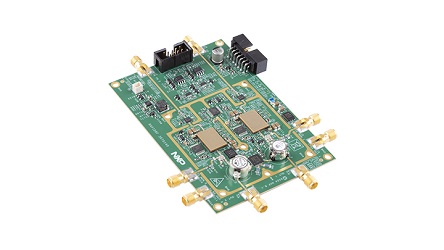

RAPIDRF-36TC

RF Evaluation Board from NXP

Evaluation Board, 3.4 to 3.8 GHz, 10 W Avg., 64.5 dB, 48 V, GaN

Status: Featured | Datasheet: Request Data Sheet | RoHS Compliance:

RapidRF-36TC

Reference design with dual-channel
GaN PAs, pre-driver and Rx
Includes dual-channel 48 V GaN Multi-Chip Modules in an innovative top-side cooled package

Reference design highlights:

Top-side cooled PAs
GaN efficiency improvements (+10pts)
Autobias with GaN sequencing
Dual-channel Rx module
“Universal” 10mm circulator
3400-3800 MHz
400 MHz IBW

Part Number: RAPIDRF-36TC
Manufacturer: NXP

No Content Available

Part Function	Part Number	Description
Complementary Product	A5M36TG040-TCT1 NXP	Amplifier, 3.4 to 3.8 GHz, 10 W Avg., 31 dB, 5V, 48V, 14 x 10 mm, GaN/LDMOS
Complementary Product	BTS6403UJ NXP	Amplifier, Pre-Driver, 2.3 to 4.2 GHz, 29.5 dBm Psat, 38.5 dB, 5 V, HVQFN16, SiGe
Complementary Product	BTS7202UJ NXP	Receiver Front End Module, 3.3 to 4.2 GHz, 2 Channels, LNA, 50 ohm, HVQFN40

Technical Inquiry Request for RAPIDRF-36TC RF Evaluation Board

Fields marked with * are required.

Product Specifications For RAPIDRF-36TC RF Evaluation Board

Part Number: RAPIDRF-36TC Manufacturer: NXP Product Description: Evaluation Board, 3.4 to 3.8 GHz, 10 W Avg., 64.5 dB, 48 V, GaN
