QPA3069

Model Number: QPA3069

Amplifier from Qorvo

Amplifier, Power, GaN, 2.7 to 3.5 GHz, 25 dB, 50 dBm, Overmold Pkg, 7 x 7 mm

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Qorvo’s QPA3069 is a packaged, high-power S-band amplifier fabricated on Qorvo’s production 0.25 um GaN on SiC process (QGaN25). Covering 2.7 – 3.5 GHz, the QPA3069 provides 50 dBm of saturated output power and 25 dB of large-signal gain while achieving 53% power-added efficiency.

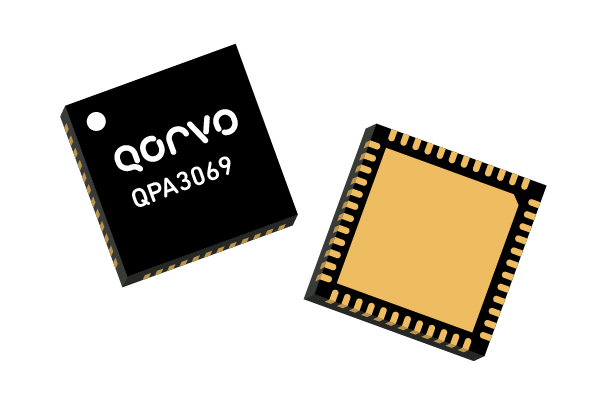

The QPA3069 is packaged in a 7 mm x 7 mm 48-pin plastic overmolded package. It can support a variety of operating conditions to best support system requirements. With good thermal properties, it can support a range of bias voltages.

The QPA3069 MMIC has DC blocking capacitors on both RF ports, which are matched to 50 ohms. The QPA3069 is ideal for military radar systems.

Lead-free and RoHS compliant.

Part Number: QPA3069
Manufacturer: Qorvo
Type: Amplifiers
Frequency Min: 2.7 GHz
Frequency Max: 3.5 GHz
Psat: 50 dBm
Gain: 25 dB
Supply Voltage \ Vd Min: 30 V
Quiescent Current \ Id: 300 mA
Power Added Efficiency: 53 %
Return Loss Input: 13 dB
Return Loss Output: 7 dB
Process: GaN

No Content Available

Part Function	Part Number	Description
Evaluation Board	QPA3069EVB Qorvo	Evaluation Board for QPA3069
