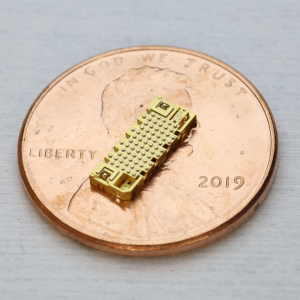

PSF19B03S

RF Filter - Band Pass from Nuvotronics

RF Filter, Interdigital, 19.45 GHz, 3.5 GHz BW

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Surface mount K band filter in a miniature form factor

Nuvotronics PolyStrata® Technology provides high performance filtering in a small form factor (8.44 mm x 4.63 mm x 1.1 mm). The PSF19B03S surface-mount interdigital filter provides low insertion loss and high rejection. Typical insertion loss performance is < 1 dB across the 17.7 - 21.2 GHz band. This part is ideal for space or ground applications. The filter is compliant with standard SMT assembly processes. Tape and reel packaging is available for bulk orders.

Part Number: PSF19B03S
Manufacturer: Nuvotronics
Center Frequency: 19450 MHz
Bandwidth: 3500 MHz
Insertion Loss TYP: 0.9 dB
Return Loss Typ: 18 dB
Low Side Rejection: 75 dB
High Side Rejection: 50 dB
Package: SMT
Length: 8.57 mm
Width: 4.63 mm
Height: 1.3 mm

No Content Available

Technical Inquiry Request for PSF19B03S RF Filter - Band Pass

Fields marked with * are required.

Product Specifications For PSF19B03S RF Filter - Band Pass

Part Number: PSF19B03S Manufacturer: Cubic Nuvotronics, Inc. Product Description: RF Filter, Interdigital, 19.45 GHz, 3.5 GHz BW

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$160.75

10 - 19

$140.68

20 - 49

$133.99

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
