PSF19B02V3S

RF Filter - Band Pass from Nuvotronics

RF Filter, Interdigital, 19.0 GHz, 2.4 GHz BW.

Status: Standard | Data Sheet:

| RoHS Compliance:

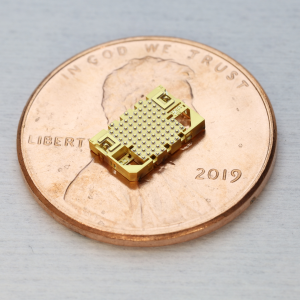

Surface mount K band filter in a miniature form factor

Nuvotronics PolyStrata® Technology provides high performance filtering in a small
form factor (7.36mm x 4.68mm x 1.3mm). The PSF19B02V3S surface-mount
interdigital filter provides low insertion loss and high rejection. Typical insertion
loss performance is < 1 dB across the 17.8 - 20.2 GHz band. This part is ideal for
space or ground applications. The filter is compliant with standard SMT assembly
processes. Tape and reel packaging is available for bulk orders.

Part Number: PSF19B02V3S
Manufacturer: Nuvotronics
Center Frequency: 19000 MHz
Bandwidth: 2400 MHz
Insertion Loss TYP: 0.75 dB
Return Loss Typ: 18 dB
Low Side Rejection: 16 dB
Low Side Rejection: 16700 MHz
High Side Rejection: 75 dB
High Side Rejection: 27500 MHz
Package: SMT
Length: 7.36 mm
Width: 4.68 mm
Height: 1.3 mm

No Content Available

Technical Inquiry Request for PSF19B02V3S RF Filter - Band Pass

Fields marked with * are required.

Product Specifications For PSF19B02V3S RF Filter - Band Pass

Part Number: PSF19B02V3S Manufacturer: Cubic Nuvotronics, Inc. Product Description: RF Filter, Interdigital, 19.0 GHz, 2.4 GHz BW.

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$168.78

10 - 19

$147.69

20 - 49

$140.65

Request a Pricing Quote for greater quantities
