Home>> RF Cable Assembly>> P1DB50-24M24M-36

P1DB50-24M24M-36

High Performance Cables from P1dB

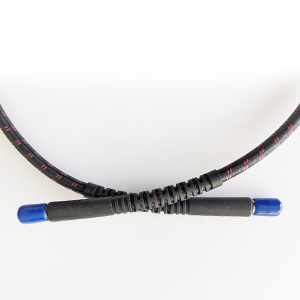

Precision 50 GHz Phase Stable Test Cable, 2.4mm (male) both ends 36’ long

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

P1dB's PinPoint™ high-performance 50 GHz cables are the ultimate in phase stable precision test cables.

• Superior phase stability with flexure and temperature.

• Superior, broad band loss and VSWR performance.

• Flex Life Cycle >50K.

• 125° operation (No Shrink-Sleeve boot).

The assembly is 36 inch and features armored low loss coax with an outer diameter of 0.24 inch, with 2.4 mm male connectors of stainless steel.

Part Number: P1DB50-24M24M-36
Manufacturer: P1dB
Connector 1: 2.4mm Male
Connector 2: 2.4mm Male
Cable Type: Low Loss
Length: 36 in
Max Frequency: 50 GHz
Impedance: 50 Ohms
