MSW2-1002HLGA

Surface Mount from Marki Microwave

RF Switch, SPDT, 0.1 to 20 GHz, 0.8 dB IL, 44 dB ISO, 54 dBm IIP3, LGA

Status: Featured | Data Sheet:

| RoHS Compliance:

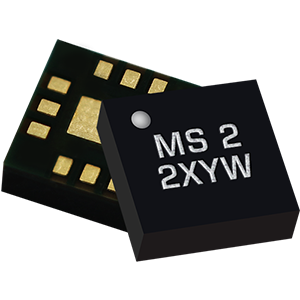

The MSW2-1002HLGA is a reflective, single-pole double throw (SPDT) switch. The part is manufactured using a Silicon-On-Insulator (SOI) process. The switch operates from 100MHz to 20GHz with average insertion loss and isolation of 0.8 dB and 44 dB respectively and input power handling and hot switching capability of 33.5 dBm. The MSW2-1002HLGA requires positive and negative 3.3V supply inputs and is controlled via a single input pin compatible with LVTTL logic. This switch has a 50-Ohm characteristic impedance. The MSW2-1002HLGA is packaged in a compact 2.25x2.25 mm LGA for surface mount integration on circuit board-based systems.

Part Number: MSW2-1002HLGA
Manufacturer: Marki Microwave
Type >>RF Switch: Single Pole
Function: SPDT
Impedance: 50 Ohms
Frequency Range Min: 100 MHz
Frequency Range Max: 20000 MHz
Insertion Loss Min: 0.8 dB
Insertion Loss Max: 0.8 dB
Isolation Min: 41 dB
Isolation Max: 44 dB
IIP3: 54 dBm
Package: LGA

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-MSW2-1002H Marki Microwave	Evaluation Board for MSW2-1002HLGA

Technical Inquiry Request for MSW2-1002HLGA RF Switch

Fields marked with * are required.

Product Specifications For MSW2-1002HLGA RF Switch

Part Number: MSW2-1002HLGA Manufacturer: Marki Microwave Product Description: RF Switch, SPDT, 0.1 to 20 GHz, 0.8 dB IL, 44 dB ISO, 54 dBm IIP3, LGA
