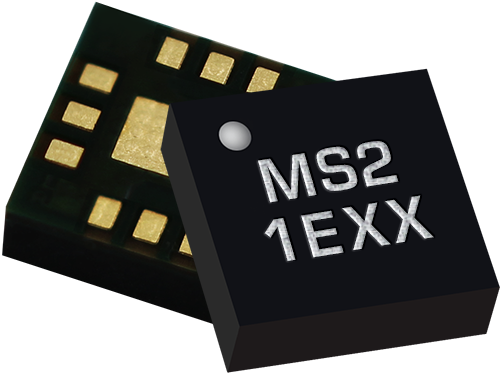

MSW2-1001ELGA

Surface Mount from Marki Microwave

RF Switch, SPDT, 0 to 40 GHz, 1.2 dB IL, 38 dB ISO, 50 dBm IIP3, LGA

Status: Featured | Data Sheet:

| RoHS Compliance:

The MSW2-1001ELGA is a reflective, single-pole double throw (SPDT) switch. The part is manufactured using a Silicon-On-Insulator (SOI) process. The switch operates from 100MHz to 40GHz with average insertion loss and isolation of 1.2dB and 40dB respectively and input power handling and hot switching capability of 27 dBm. The MSW2-1001ELGA requires positive and negative 3.3V supply inputs and is controlled via a single input pin compatible with LVTTL logic. This switch has a 50 ohm characteristic impedance. The MSW2-1001ELGA is packaged in a compact 2.25x2.25 mm LGA for surface mount integration on circuit board-based systems.

Part Number: MSW2-1001ELGA
Manufacturer: Marki Microwave
Type >>RF Switch: Single Pole
Function: SPDT
Impedance: 50 Ohms
Frequency Range Min: 0 MHz
Frequency Range Max: 40000 MHz
Insertion Loss Min: 0.7 dB
Insertion Loss Max: 1.5 dB
Isolation Min: 38 dB
Isolation Max: 57 dB
IIP3: 50 dBm
Package: LGA

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-MSW2-1001E Marki Microwave	Evaluation Board for MSW2-1001ELGA

Technical Inquiry Request for MSW2-1001ELGA RF Switch

Fields marked with * are required.

Product Specifications For MSW2-1001ELGA RF Switch

Part Number: MSW2-1001ELGA Manufacturer: Marki Microwave Product Description: RF Switch, SPDT, 0 to 40 GHz, 1.2 dB IL, 38 dB ISO, 50 dBm IIP3, LGA

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

25 - 99

$87.59

100 - 499

$80.87

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices

Description	Units Per Format	Available

Description	Units Per Format	Available
