Home>> Frequency Multiplier>> MMD-1030LS

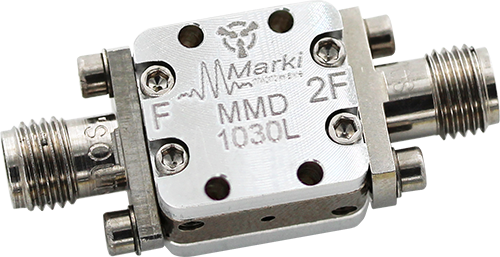

MMD-1030LS

Connectorized from Marki Microwave

Frequency Doubler, MMIC, 5.0 to 15.0 GHz (Input), 10.0 to 30.0 GHz (output), 12.5 dB, RoHS, Connectorized-LS

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MMD-1030L is a MMIC doubler fabricated with GaAs Schottky diodes. This part operates over a 5 to 15 GHz input frequency range or a doubled output frequency range of 10 to 30 GHz. It features excellent conversion loss, superior isolations, and harmonic suppressions across a broad bandwidth. Both the wire bondable die and connectorized units are available.

Part Number: MMD-1030LS
Manufacturer: Marki Microwave
Frequency Min: 5 GHz
Frequency Max: 30 GHz
Conversion Gain: 21.5 dB
Package: Connectorized
Type: Doubler
Active/Passive: Passive

No Content Available

Technical Inquiry Request for MMD-1030LS Frequency Multiplier

Fields marked with * are required.

Product Specifications For MMD-1030LS Frequency Multiplier

Part Number: MMD-1030LS Manufacturer: Marki Microwave Product Description: Frequency Doubler, MMIC, 5.0 to 15.0 GHz (Input), 10.0 to 30.0 GHz (output), 12.5 dB, RoHS, Connectorized-LS

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$712.00

5 - 9

$670.12

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
