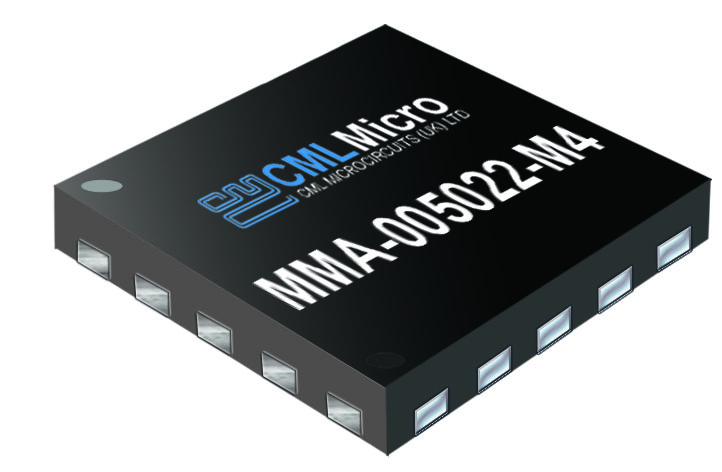

MMA-005022-M4

SuRF RF from CML Microcircuits

Amplifier, Traveling Wave, MMIC, GaAs, 50 Ohm, 30 KHz -40 GHz, 22 dBm P1dB, 7 V, 13.5 dB Gain, 4 x 4 mm QFN package

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MMA-005022-M4 is a broadband GaAs MMIC Traveling Wave Amplifier (TWA) with medium output power and high gain over full 30KHz to 50GHz frequency range. This amplifier is optimally designed for broadband applications requiring flat gain and group delay with excellent input and output matches over a 30KHz to 50GHz frequency range.

Features:
• Frequency Range: 30 KHz – 50 GHz ∗
• P1dB: +22 dBm
• Vout: 7V p-p @50Ω
• Gain: 13.5 dB
• Vdd =7 V
• Ids = 200 mA
• Input and Output Fully Matched to 50 Ω
• Surface Mount, RoHs Compliant QFN 4x4mm package
∗ NOTE: Performance degredation over 40 GHz

Applications:
• Fiber optics communication systems
• Microwave and wireless communication systems
• Microwave and optical instrumentations

Part Number: MMA-005022-M4
Manufacturer: CML Microcircuits
Export Status:
Type: MMIC Amplifiers
Frequency Min: 0.00003 GHz
Frequency Max: 40 GHz
P1dB: 22 dBm
Gain: 13.5 dB
IP3: 30 dBm
Supply Voltage \ Vd Max: 7 V
Quiescent Current \ Id: 200 mA
Package: QFN 4x4mm
Process: GaAs

No Content Available

Part Function	Part Number	Description
Evaluation Board	MMA-005022-M4EV CML Microcircuits	Evaluation Board for MMA-005022-M4
