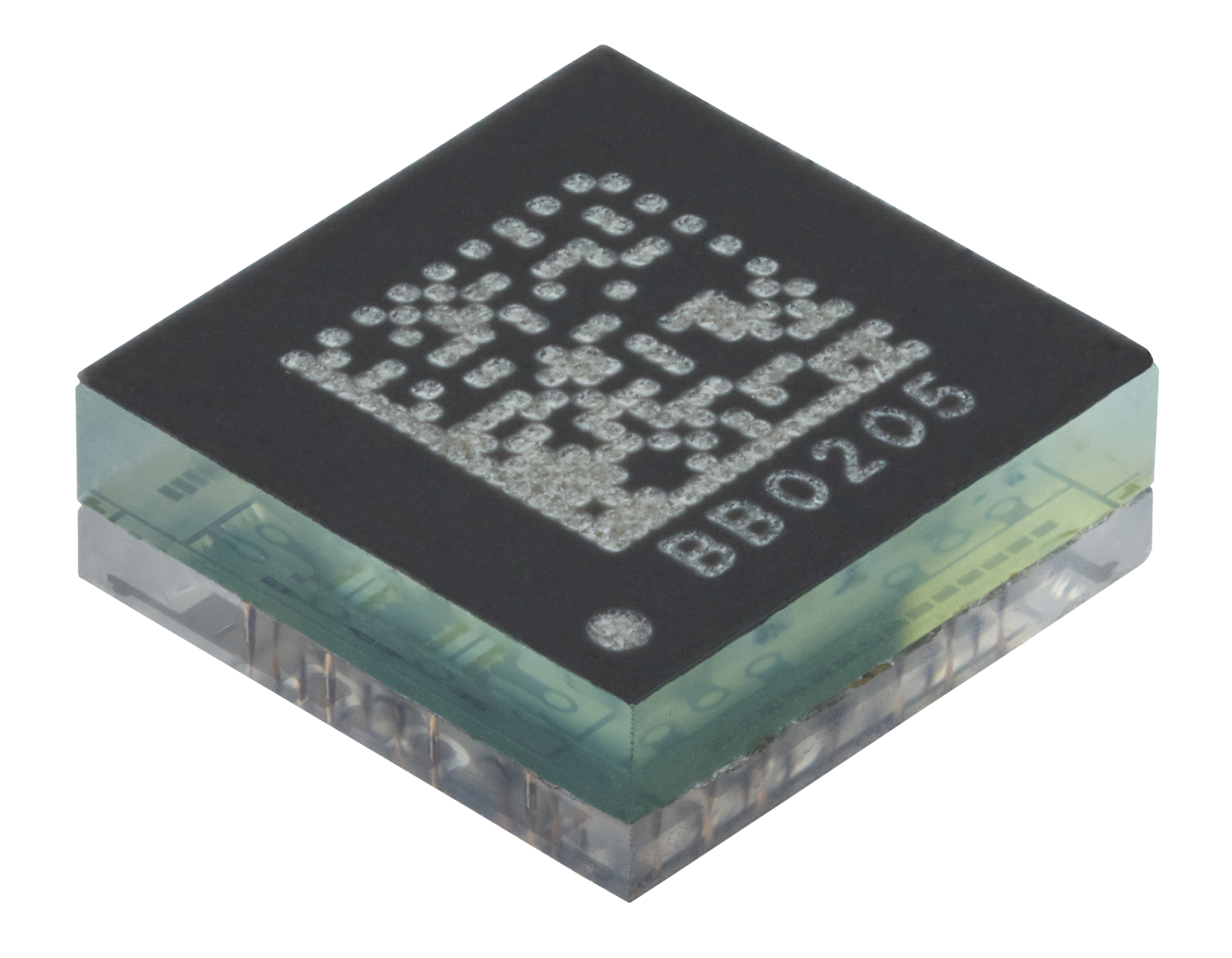

MM5130-03NDB-TR

RF Switch from Menlo Microsystems

RF Switch, SP4T, 0 to 26 GHz, 1.3 dB IL, 95 dBm IP3, 18 dB Isolation, 25 W CW, 2.5 x 2.5 mm WL-CSP

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The MM5130 device is a high-power SP4T micro-mechanical switch offered by Menlo Micro. Menlo Micro has developed a new Ideal Switch® fabrication process and applied it to DC and wideband RF/microwave switch applications. This innovative technology enables highly reliable switches capable of 25 W forward power. The MM5130 provides ultra-low insertion loss and superior linearity as an SP4T from DC to 18 GHz. The MM5130 can also be configured in Super-Port mode that extends the frequency operation to 26 GHz. The MM5130 is an ideal solution for replacing large RF electromechanical relays, as well as RF/microwave solid-state switches in applications where linearity and insertion loss are critical parameters. The four switch channels are individually controllable by applying a gate voltage to the corresponding RF GATE pin.

Part Number: MM5130-03NDB-TR
Manufacturer: Menlo Microsystems
Type >>RF Switch: Single Pole
Function: SP4T
Impedance: 50 Ohms
Frequency Range Min: 0 MHz
Frequency Range Max: 26000 MHz
Insertion Loss Min: 0.4 dB
Insertion Loss Max: 1.3 dB
Isolation Min: 18 dB
Isolation Max: 45 dB
Power Rating: 44 dBm
IIP3: 95 dBm
Package: WLCSP
Descriptions: High Power

No Content Available

Part Function	Part Number	Description
Evaluation Board	MM5130EVK1 Menlo Microsystems	Standard evaluation board for MM5130-03NDB-TR (w/SMA connector-QTY-7, <12 GHz)
Evaluation Board	MM5130EVK2 Menlo Microsystems	High-performance evaluation board for MM5130-03NDB-TR (w/Southwest connector-QTY-5, >12 GHz improved performance)
Evaluation Board	MM5130EVK2A Menlo Microsystems	High-performance evaluation board for MM5130-03NDB-TR (w/Southwest connector-QTY-7, >12 GHz improved performance)
Evaluation Board	MM5130EVK3 Menlo Microsystems	High-performance evaluation board for MM5130-03NDB-TR Superport mode (w/Southwest connector-QTY-4, 26 GHz improved performance)
Evaluation Board	MM5130EVK3A Menlo Microsystems	High-performance evaluation board for MM5130-03NDB-TR Superport mode (w/Southwest connector-QTY-6, 26 GHz improved performance)
Evaluation Board	MM5130EVK4 Menlo Microsystems	Standard evaluation board for MM5130-03NLX (w/SMA connector-QTY-7, <12GHz)
