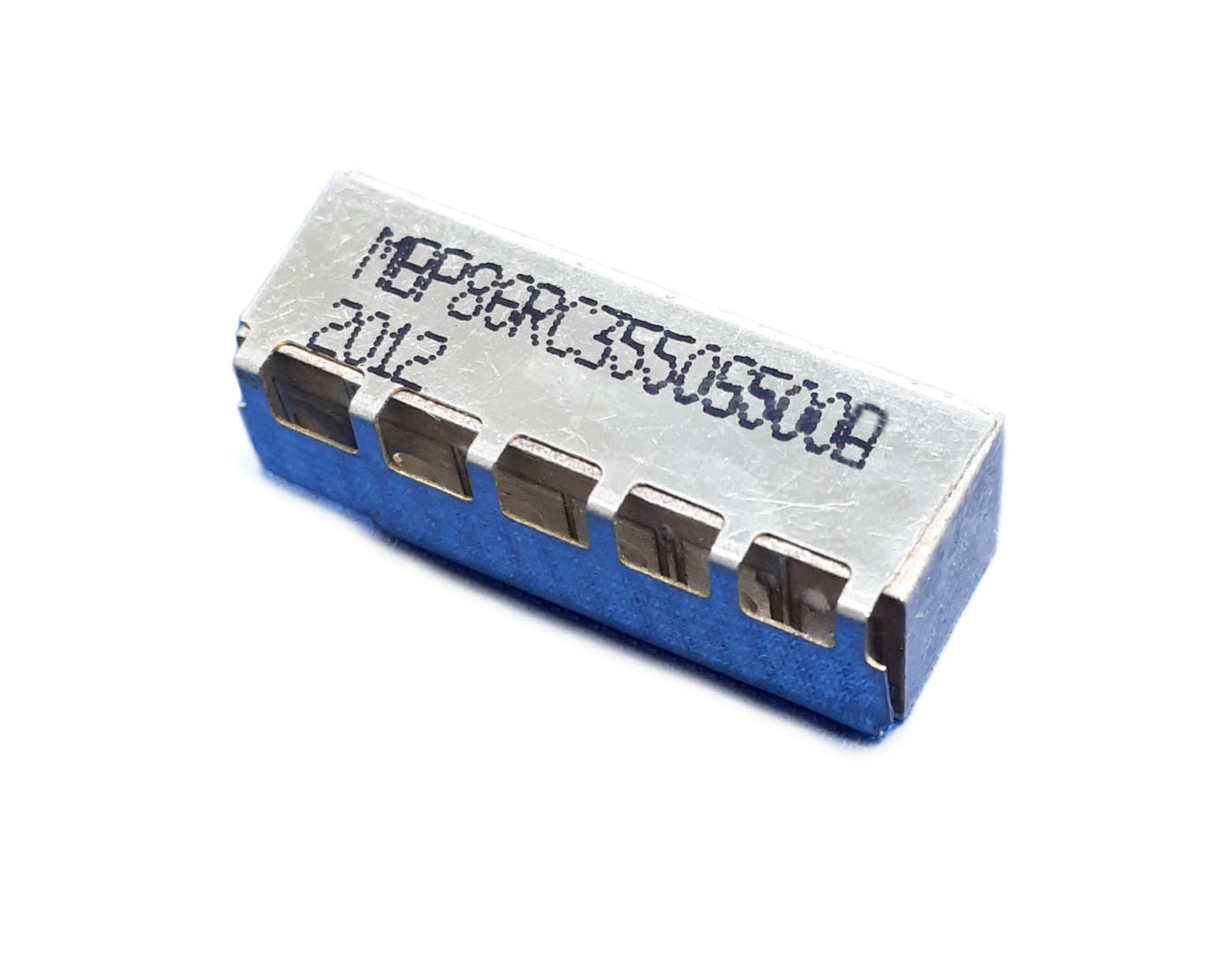

MBP86RC3550S500B

RF Filter - Band Pass from Sangshin

Filter, Monoblock, 3550 MHz, 500 MHz BW

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Sanghin’s MBP86RC3550S500B is a high power small form factor filter covering the entire n78 frequency band with a single device making it suitable as a roofing filter for global deployments of 5G gnodeBs.

Alternative solutions with narrower bandwidths for improved selectivity are available, such as the US CBRS band 3550 to 3700 MHz and custom designs (100MHz channels, for example) can be easily accommodated.

Part Number: MBP86RC3550S500B
Manufacturer: Sangshin
Filtering Technology: Monoblock
Center Frequency: 3550 MHz
Bandwidth: 500 MHz
Insertion Loss TYP: 1 dB
Return Loss Typ: 14 dB
Low Side Rejection: 43 dB
Low Side Rejection: 3000 MHz
High Side Rejection: 43 dB
High Side Rejection: 4200 MHz
Package: SMT
Length: 24.1 mm
Width: 5.5 mm
Height: 8.3 mm
