Home>> Amplifier>> F6923

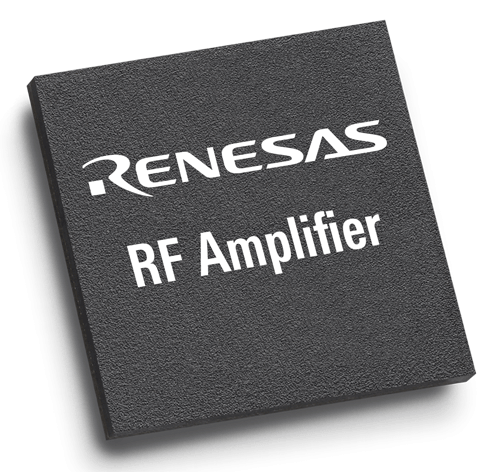

F6923

RF from Renesas

Amplifier, LNA Low Noise, 14.4 to 17.3GHz, -2dBm, 19dB gain, 2.7x2.7mm 23-BGA

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The F6923 is an ultra-low power consumption, dual-channel, low noise amplifier (LNA) RFIC designed for application in Ku-Band planar phased array antennas. The exceptional combination of low power consumption, low noise, high gain, and compact size, maximizes the antenna array G/T while minimizing overall system power dissipation.

An externally supplied reference bias current is used to trade LNA power consumption against P1dB and gain, completely shut off (idle) the amplifier during operation or for gain compensation versus temperature. The LNA is supplied in a compact 23-pin, 0.5mm pitch FCCSP (BGA) package with 50Ω matched single-ended RF inputs and outputs for ease of integration onto phased array antenna panels.

Part Number: F6923
Manufacturer: Renesas
Type: Amplifiers
Frequency Min: 14.4 GHz
Frequency Max: 17.3 GHz
P1dB: -2 dBm
Gain: 19 dB

Tariff Notice

Product may be included on Section 301 Tariff List and subject to applicable tariff charges.

Part Function	Part Number	Description
Evaluation Board	F6923EVB Renesas	EVS for F6923 - Amplifier, Ku Band Dual Channel LNA, 14.4-17.3GHz, -2dBm, 19dB gain, 2.7x2.7mm 23-BGA
Complementary Product	F6123S Renesas	Beamformer, 14.4GHz-17.3GHz, 16-Channel Dual-beam Rx Active Beamforming IC, Ku/CDL-Band
Complementary Product	F6513S Renesas	Beamformer, 13.75GHz-17.3GHz, Tx, 8 Channel Ku / CDL Band

Technical Inquiry Request for F6923 Amplifier

Fields marked with * are required.

Product Specifications For F6923 Amplifier

Part Number: F6923 Manufacturer: Renesas Electronics America Inc. Product Description: Amplifier, LNA Low Noise, 14.4 to 17.3GHz, -2dBm, 19dB gain, 2.7x2.7mm 23-BGA

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

5110

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$11.18

10 - 99

$10.35

100 - 999

$8.85

1000 - 4999

$8.53

Request a Pricing Quote for greater quantities
