Home>> Beamformer>> F6121S

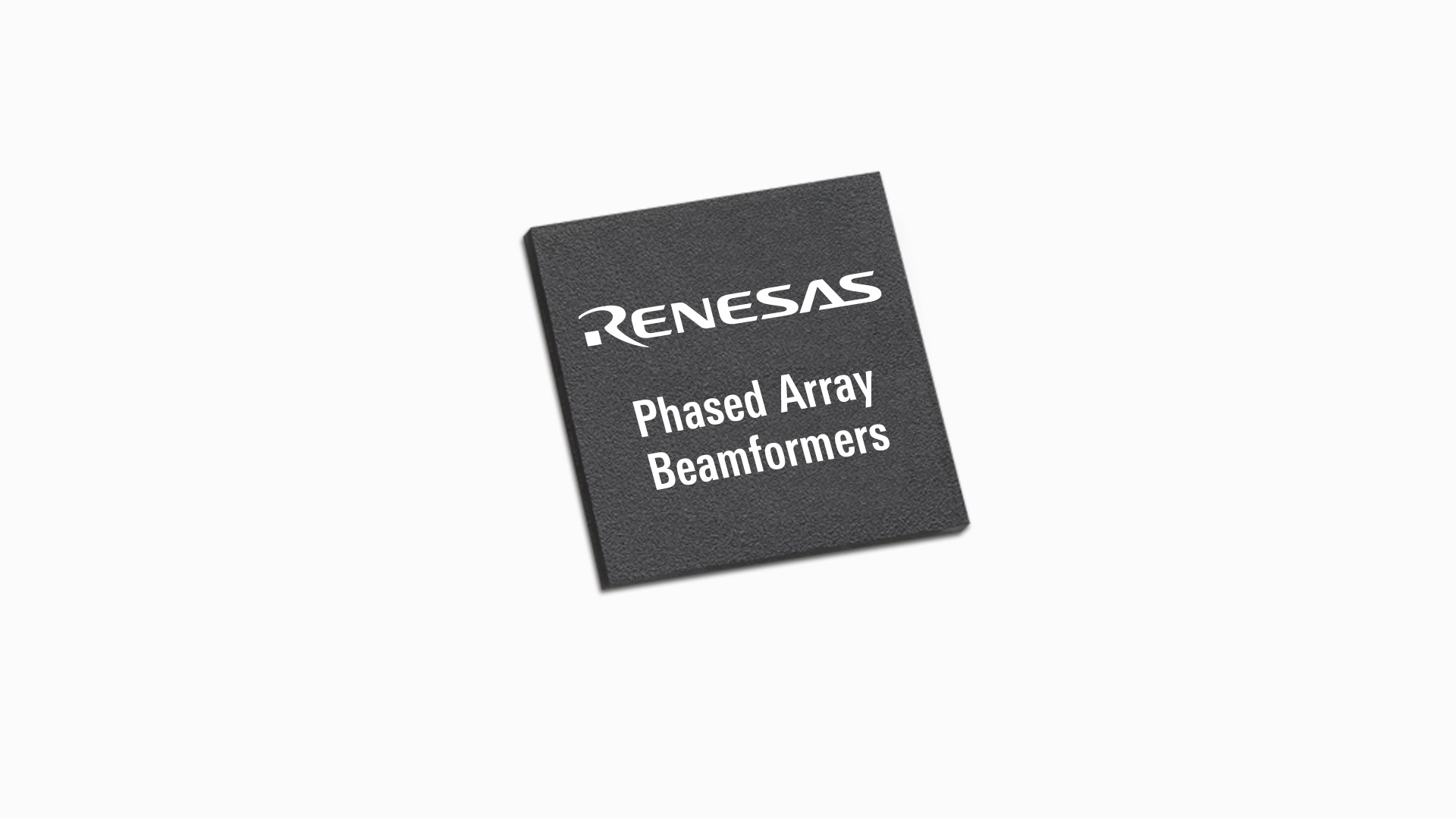

F6121S

RF from Renesas

Beamformer, 10.7-12.75GHz, 16-channel Rx active beamforming IC, Ku-band.

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The F6121 is a 16-channel dual-beam receive active beamforming RFIC designed for application in Ku-Band SATCOM planar phased array antennas. The IC has eight RF input ports, two RF output ports and 16 (8 per beam) phase/amplitude control channels. The eight input ports of the IC may be driven by eight single-polarized elements or four dual-polarized elements of an electronically scanned array (ESA). Each channel has 6-bits of digital phase and gain control resolution spanning 360° and 26dB of dynamic range, enabling precise beam pattern and polarization control.

Part Number: F6121S
Manufacturer: Renesas
Frequency Min: 10.7 GHz
Frequency Max: 12.75 GHz

No Content Available

Part Function	Part Number	Description
Evaluation Board	F6121SEVS Renesas	Evaluation System for F6121S
Complementary Product	F6521S Renesas	Beamformer, 13.75-14.5GHz, 8-channel Tx active beamforming IC, Ku band
Complementary Product	F6921 Renesas	Amplifier, Low Noise, Dual Channel, Ku Band, 10.7 to 12.75GHz, -5dBm, 19db gain, 2.7 x 2.7,BGA

Technical Inquiry Request for F6121S Beamformer

Fields marked with * are required.

Product Specifications For F6121S Beamformer

Part Number: F6121S Manufacturer: Renesas Electronics America Inc. Product Description: Beamformer, 10.7-12.75GHz, 16-channel Rx active beamforming IC, Ku-band.

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

237

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 99

$106.11

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
