Home>> RF Evaluation Board>> F5268EVS

F5268EVS

RF from Renesas

Evaluation System for F5268

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

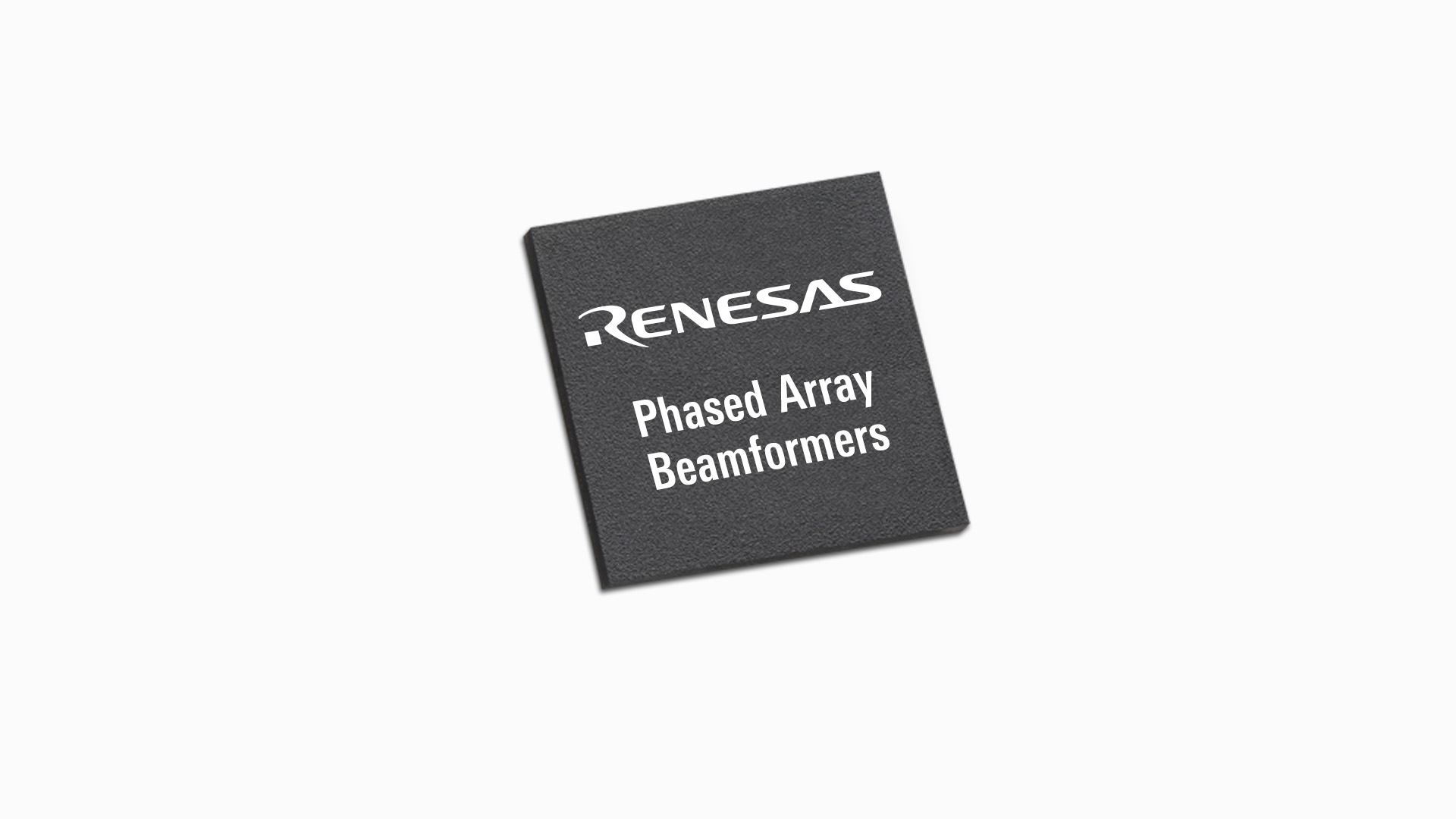

8-Channel Dual-Polarization TRX Beamformer IC at 24.25GHz - 27.5GHz

The F5268 is an eight-channel TRX silicon IC designed for dual polarization 5G phased-array applications at n258/n261 bands. This device provides more than 15.5dBm linear output power* in silicon for wide-band 5G-NR waveforms.
*Power level with <3% EVM using 400MHz 5G-NR CP-OFDM waveform

Features

24.25GHz to 27.5GHz operation
8 radiation channels, beam-per-polarization
Flexible output power and high efficiency with Dynamic Array Power (DAP™)
ArraySense™ technology for real-time monitoring
High-speed SPI control with RapidBeam™ technology
5.1mm × 5.1mm, 118-BGA package with exposed-die
-40°C to +95°C ambient operating temperature range

Part Number: F5268EVS
Manufacturer: Renesas

No Content Available

Technical Inquiry Request for F5268EVS RF Evaluation Board

Fields marked with * are required.

Product Specifications For F5268EVS RF Evaluation Board

Part Number: F5268EVS Manufacturer: Renesas Electronics America Inc. Product Description: Evaluation System for F5268
