Home>> Variable Gain Amplifier>> F1106

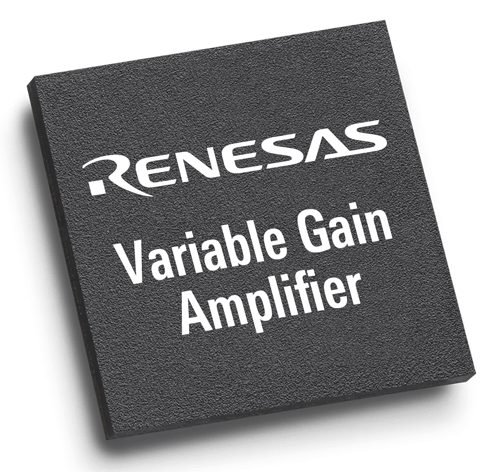

F1106

Variable Gain Amplifier from Axiro Semiconductor Inc.

Variable Gain Amplifier -- 1.4 to 3, 32dB, 20dBm, 39dBm, 195mA

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance: Rohs Compliant

DUAL CHANNEL BYPASS RX VGA

❖ Single Die solution for dual RX channels
❖ Zero_DistortionTM feature enhances linearity
❖ Glitch_FreeTM gain control minimizes overshoot
❖ Amp1 bypass feature reduces large blockers while maintaining linearity
❖ Minimize Phase shift as gain is reduced
❖ Pinout allows for inter-stage filtering

• Dual Path RF amp & DSAs for Diversity / MIMO Receivers
• RF Frequency:
• F1106: 1400MHz to 3000MHz
• F1107: 3000MHz to 4000MHz
• 32dB typical max path gain @ 2000MHz
• Each DSA has 31.5 dB of independent control range
• +39dBm second stage amplifier OIP3
• +21dBm OP1dB
• +5V Supply Voltage
• ICC = 380mA
• Independent path STBY
• 50 Ω input and output impedance
• Extended temperature: -40 °C to +105 °C
• 6mm x 6mm, 36-pin TQFN package

Part Number: F1106
Manufacturer: Axiro Semiconductor Inc.
Frequency Range: 1.4 to 3 GHz
Gain: 32 dB
OP1dB: 20 dBm
OIP3: 39 dBm
Bias Current: 195 mA
