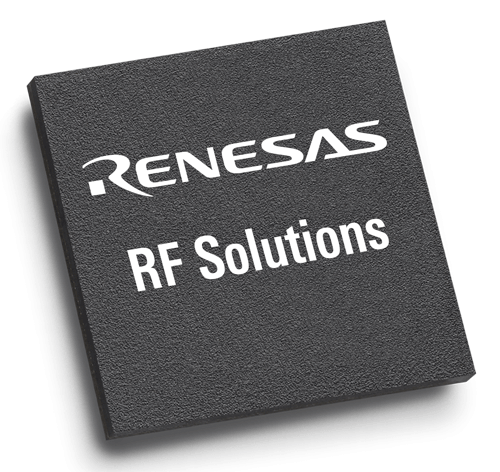

F0472C

RF from Renesas

Dual-Channel Switch + Low Noise Amplifier Modules Rx FEM, 2.3-2.7GHz

Status: Standard | Datasheet: Request Data Sheet | RoHS Compliance: Rohs Compliant

3W DUAL CHANNEL RX FEM

High integration
Low noise and high linearity
On chip matching and bias
Extremely low current consumption

Frequency Band: 3.3GHz 4.2GHz

Gain at 3.5GHz
35.5dB typical in High Gain Mode
29.5dB typical in Low Gain Mode

1.1dB NF at 3.5GHz
Channel Isolation: 40dB
50Ω single ended input / output amplifier impedances
I DD = 140mA
Supply voltage: +3.15V to +3.45V
5 × 5 mm LGA package
40 C to +105 C exposed pad operating temperature range

Part Number: F0472C
Manufacturer: Renesas
Frequency Min: 3300 MHz
Frequency Max: 4200 MHz
Rx Gain: 35.5 dB
Rx NF: 1.1 dB
Voltage Min: 3.15 V
Voltage Max: 3.45 V
