Home>> Front-End Module>> F0453C

F0453C

RF from Renesas

Front-end Module,Dual Path RF Switch with LNA and DVGA 3400MHz to 3800MHz

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

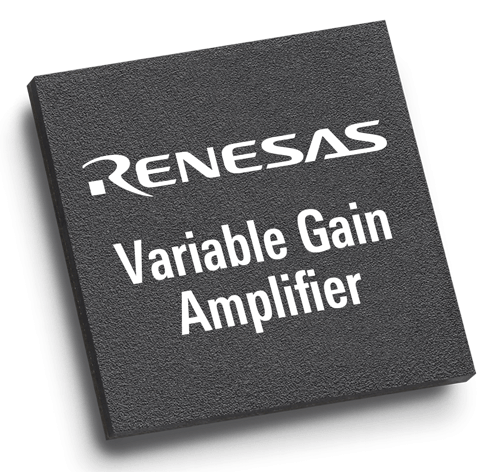

IDT's F0453B is an integrated dual-path RF front-end consisting of an RF switch and two gain stages with 6dB gain control used in the analog front-end receiver of an Active Antenna System (AAS). The F0453B supports frequencies from 3400MHz to 3800MHz.The F0453B provides 34.5dB gain with +23dBm OIP3, +15dBm output P1dB, and 1.35dB noise figure at 3500MHz. Gain is reduced 6dB in a single step with a maximum settling time of 31ns. The device uses a single 3.3V supply and 130mA of IDD. The F0453B is offered in a 5 x 5 x 0.8mm, 32-LGA package with 50Ω input and output amplifier impedances for ease of integration into the signal path.

Part Number: F0453C
Manufacturer: Renesas

No Content Available

Part Function	Part Number	Description
Evaluation Board	F0453CEVB Renesas	Evaluation Board for F0453C

Technical Inquiry Request for F0453C Front-End Module

Fields marked with * are required.

Product Specifications For F0453C Front-End Module

Part Number: F0453C Manufacturer: Renesas Electronics America Inc. Product Description: Front-end Module,Dual Path RF Switch with LNA and DVGA 3400MHz to 3800MHz
