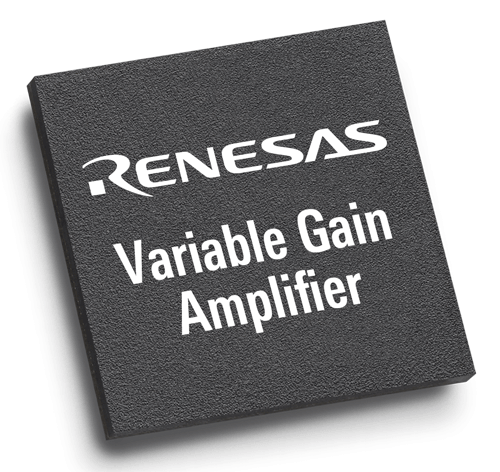

The F0453B is an integrated dual-path RF front-end consisting of an RF switch and two gain stages with 6dB gain control used in the analog front-end receiver of an Active Antenna System (AAS). The F0453B supports frequencies from 3300MHz to 4000MHz.

The F0453B provides 34.5dB gain with +23dBm OIP3, +15dBm output P1dB, and 1.35dB noise figure at 3500MHz. Gain is reduced 6dB in a single step with a maximum settling time of 31ns. The device uses a single 3.3V supply and 130mA of IDD.

The F0453B is offered in a 5 x 5 x 0.8 mm, 32-LGA package with 50Ω input and output amplifier impedances for ease of integration into the signal path.

Features

  • Gain at 3500MHz
    • 34.5dB typical in High Gain Mode
    • 28.5dB typical in Low Gain Mode
  • 1.35dB NF at 3500MHz
  • +23dBm OIP3 at 3500MHz
  • OP1dB at 3500MHz
  • +15dBm in High Gain Mode
  • +14dBm in Low Gain Mode
  • 50Ω single-ended input / output amplifier impedances
  • IDD = 130mA
  • Independent Standby Mode for power savings
  • Supply voltage: +3.15V to +3.45V
  • 5 × 5 mm, 32-LGA package
  • -40°C to +105°C exposed pad operating temperature range
