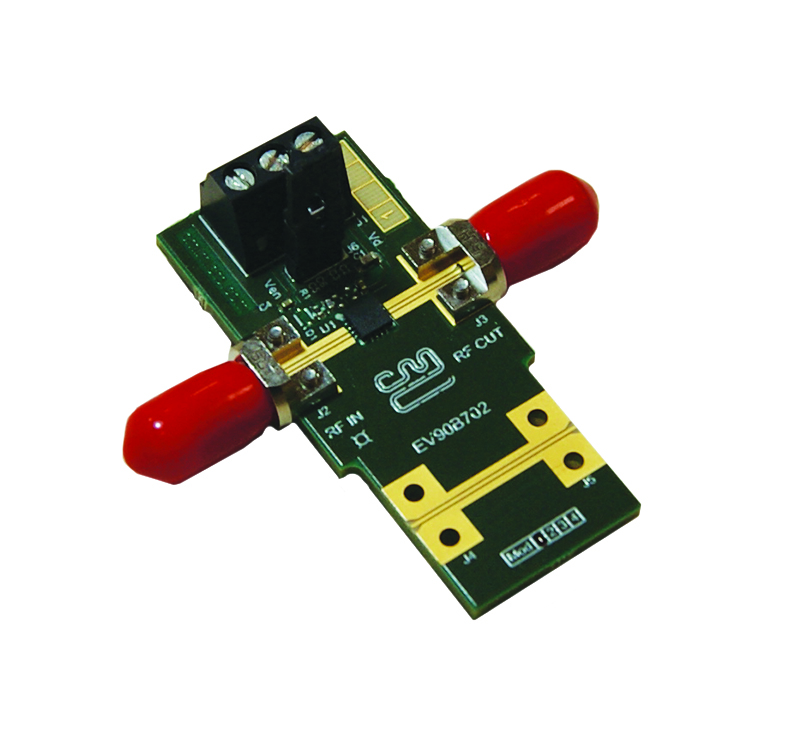

EV90B702

The CMX90B702 is a low-current 50 Ω gain block suitable for a wide variety of wireless applications covering 23 – 29.5 GHz.

CMX90B702 is highly integrated to minimize external component count and board area. RF ports are matched on-chip to 50 Ω with an output DC-blocking capacitor. An active bias circuit helps maintain performance over a wide temperature range and supply voltage of 3 – 5 V.

The device is an easy-to-use gain block with fast enable circuit and dual-bias mode for system optimization, selecting bias of 10 mA or 15 mA.

CMX90B702 is fabricated using a GaAs pHEMT process to provide optimum gain, linearity, and noise together with low DC power consumption.

A footprint-compatible variant, CMX90B701, is available for applications covering 17 – 23 GHz.
