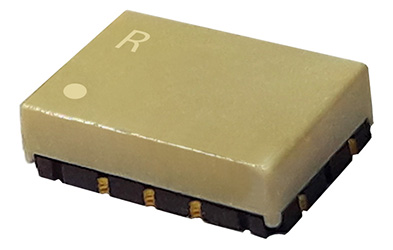

E8006LF

The E8006LF has Rakon Neptune™ Ultra Stable TCXO (US-TCXO) at it's core – the RNT7050 series. This new series offers best-in-class frequency stability of ±50ppb for 5G and other telecommunication applications and is available in a 7x5mm footprint.

At the core is Rakon’s in-house designed and manufactured XMEMS™ crystal resonator technology. XMEMS™ is based on Rakon’s proprietary NanoQuartz™photolithography process.

Both the RNT7050A and the RNT7050AL maintain long-term stability (ageing) of better than 1.5 ppm over 10 years. The products meet the stringent requirements of IEEE 1588v2,  ITU-T G.813, G.8273.2 and  G.8262 & G.8262.1.

The design and engineering of the RNT7050 series recognises that 5G Remote Radio Head (RRH) air interfaces need tight Error Vector Magnitude (EVM) limit masks, and thus low contribution to EVM from the phase noise of reference clocks.

As an example the E8006LF has an outstanding low noise floor of -158 dBc/Hz enabling tight Error Vector Magnitude masks to be met for 5G RRHs – making the RNT7050 series the device of choice for radio and network interfaces.

The RNT7050 series offers ideal solutions for 5G and other telecommunication applications in which low sensitivity to temperature changes, low aging and low phase noise are critical.

The Neptune™ family utilises Rakon’s patented ‘tilt compensation’ technology assuring the frequency stability is maintained at any control voltage and guaranteeing optimum performance over the life of the equipment.
