CT0404ALN1WB1

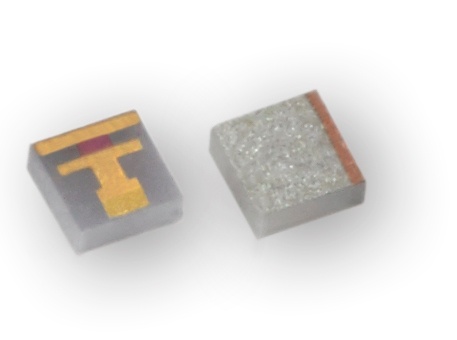

Smiths Interconnect’s new high frequency chip terminations offer a unique combination of high power and high ferquency in a small package.

The new CTX Series is designed to offer excellent broadband performance up to 64GHz. It allows wider coverage than traditional components while ensuring optimized return loss for multiple band ranges and applications.  This allows the customer to use a single chip in multiple applications reducing the cost of ownership.

The market trends of Space and Defense communications systems need higher frequency chip termination products specifically tuned to operate from L through V band frequency ranges where the power levels vary depending on the band of interest and whether the product functions on the transmit or receive part of the system.

By providing a higher level of frequency Up to 64 GHz, we assure that the electrical performance of the terminations with optimized return loss is optimal for different band ranges and applications.

• Power rating up to 5 Watts, increased by up to 5x over alternative solutions
• Frequency rating DC to 64 GHz with optimal broad band performance
• Reduced footprint (up to 75% smaller) allowing for space and weight savings on the board: 0.040” x 0.040” x 0.015” (1.016mm X .016mm x 0.381 mm)
• High volume production capability supporting customers’ quick ramp up program needs

High Frequency Terminations Electrical and Thermal Test Report
