CMX90A009QK

SuRF RF from CML Microcircuits

Power Amplifier, 136 to 1000 MHz, 10W, 17 dB

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

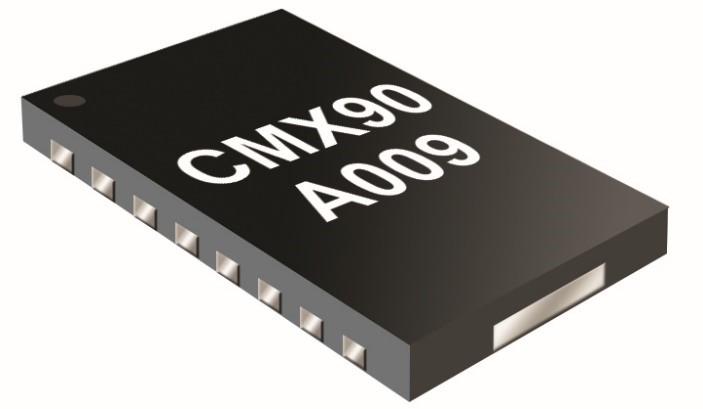

The CMX90A009 is a high efficiency two-stage GaAs HBT driver amplifier in a thermally enhanced plastic DFN package, delivering +40.0 dBm (10W) of output power with >60 % efficiency at 435 MHz and 7.4 V.

CMX90A009 requires external matching at both input and output to optimize performance for each application and frequency band.

Wide supply voltage range of 6 – 9.5V make it suitable for a variety of applications and enable direct connection to dual-cell Lithium batteries and on-chip active bias maintains operation over temperature.

CMX90A009 is intended as the output stage in a high-power amplifier, combined with CMX90A007 driver to provide a complete line-up solution.

Features

Frequency range 136 – 1000 MHz
Supply voltage 6 – 9.5 V
P3dB +40.0 dBm @ 435MHz, Vcc = 7.4V
Small signal gain 17 dB
High collector efficiency >60% @ P3dB
On-chip active bias
OIP3 +45 dBm @ +33 dBm/tone @ 435 MHz

Part Number: CMX90A009QK
Manufacturer: CML Microcircuits
Type: Amplifiers
Frequency Min: 0.136 GHz
Frequency Max: 0.1 GHz
Gain: 17 dB
Supply Voltage \ Vd Min: 6 V
Supply Voltage \ Vd Max: 9.5 V

No Content Available

Part Function	Part Number	Description
Evaluation Board	EV90A009 CML Microcircuits	Evaluation Board for the CMX90A009QK
Complementary Product	CMX90A007Q7 CML Microcircuits	Power Amplifier, 136 to 1000 MHz, 2W, 28 dB

Technical Inquiry Request for CMX90A009QK Amplifier

Fields marked with * are required.

Product Specifications For CMX90A009QK Amplifier

Part Number: CMX90A009QK Manufacturer: CML Microcircuits Product Description: Power Amplifier, 136 to 1000 MHz, 10W, 17 dB
