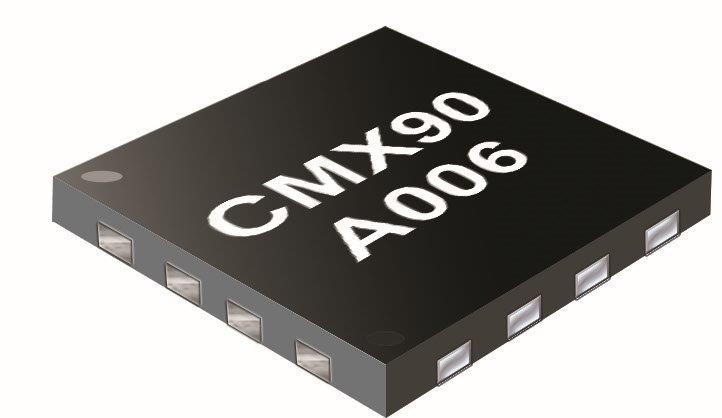

CMX90A006Q7

SuRF RF from CML Microcircuits

Power Amplifier, 860 to 930 MHz, 2 W, 33 dB, 4 x 4 mm VQFN-16

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The CMX90A006 is a two-stage linear RF power amplifier in QFN package, delivering +33 dBm of output power at 1 dB gain compression over the frequency range of 860 – 930 MHz, applicable to license-free bands.

Operating over a wide supply voltage range of 2.5 – 5.25 V to enable system level optimization and suitable for single cell Lithium batteries.

CMX90A006 is highly integrated for ease of use, reducing external component count and board space. The RF input is internally matched to 50 Ω, whilst the output match is implemented externally to optimize performance for each application.

The use of InGaP HBT process technology provides excellent reliability and balance between efficiency, gain and linearity. CMX90A006 is intended as a final stage ISM band PA in wireless applications.

Part Number: CMX90A006Q7
Manufacturer: CML Microcircuits
Frequency Min: 0.86 GHz
Frequency Max: 0.93 GHz
P1dB: 33 dBm
Gain: 33 dB
IP3: 42 dBm
Supply Voltage \ Vd Min: 2.5 V
Supply Voltage \ Vd Max: 5.25 V
Package: 4 X 4mm
Power Added Efficiency: 50 %

No Content Available

Part Function	Part Number	Description
Evaluation Board	EV90A006 CML Microcircuits	EVB for CMX90A006
