Home>> RF Bias Tee>> BTL-0012SMG-2

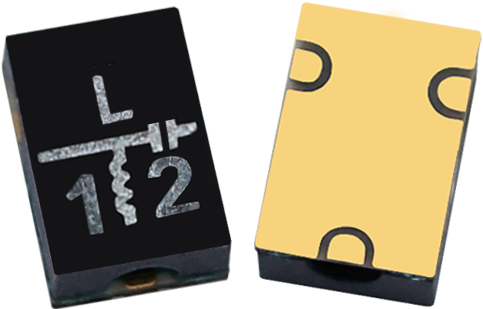

BTL-0012SMG-2

Surface Mount from Marki Microwave

Bias Tee, 12 GHz Max, 0.5 dB IL, 0.5 A, 30 VDC, Lead-Free, Mini-SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

Marki Microwave surface mount bias tees are built using our proprietary wire-wound coil technology and precise assembly processes enabling ultra-broadband resonance-free operation in a compact .150” x .220” package. BTL models offer the lowest frequency extension, 500 kHz, with the option to extend down to 5 kHz by using an external coil. Optional bypass capacitors can be added near the DC input port to filter noise on the DC line. The BT models include the bypass capacitor on the DC line and operate down to 20 MHz. Common applications include amplifier bias, diode bias and for DC level shifting.

Part Number: BTL-0012SMG-2
Manufacturer: Marki Microwave
Frequency Min: 0.0005 GHz
Frequency Max: 12 GHz
Insertion Loss: 0.5 dB
Current Rating: 0.5 A
Voltage Rating: 30 VDC

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVAL-BTL-0012 Marki Microwave	Evaluation Board for BTL-0012SMG-X
Complementary Product	BTL-0012SMG-1 Marki Microwave	Bias Tee, 12 GHz Max, 0.5 dB IL, 0.5 A, 30 VDC, Lead-Free, Mini-SMT

Technical Inquiry Request for BTL-0012SMG-2 RF Bias Tee

Fields marked with * are required.

Product Specifications For BTL-0012SMG-2 RF Bias Tee

Part Number: BTL-0012SMG-2 Manufacturer: Marki Microwave Product Description: Bias Tee, 12 GHz Max, 0.5 dB IL, 0.5 A, 30 VDC, Lead-Free, Mini-SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

On Order

100

by 10/31/2025

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$205.18

5 - 9

$157.83

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
