B192NB2S

RF Filter - Band Pass from Knowles — DLI – Dielectric Laboratories

RF Filter - Band Pass -- Ceramic Substrate, 19200MHz, 4000MHz, 4dB, 12dB, 50dB, 16000MHz, 50dB, 22800MHz, SMT, 11.43mm, 3.55mm, 2.1mm

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

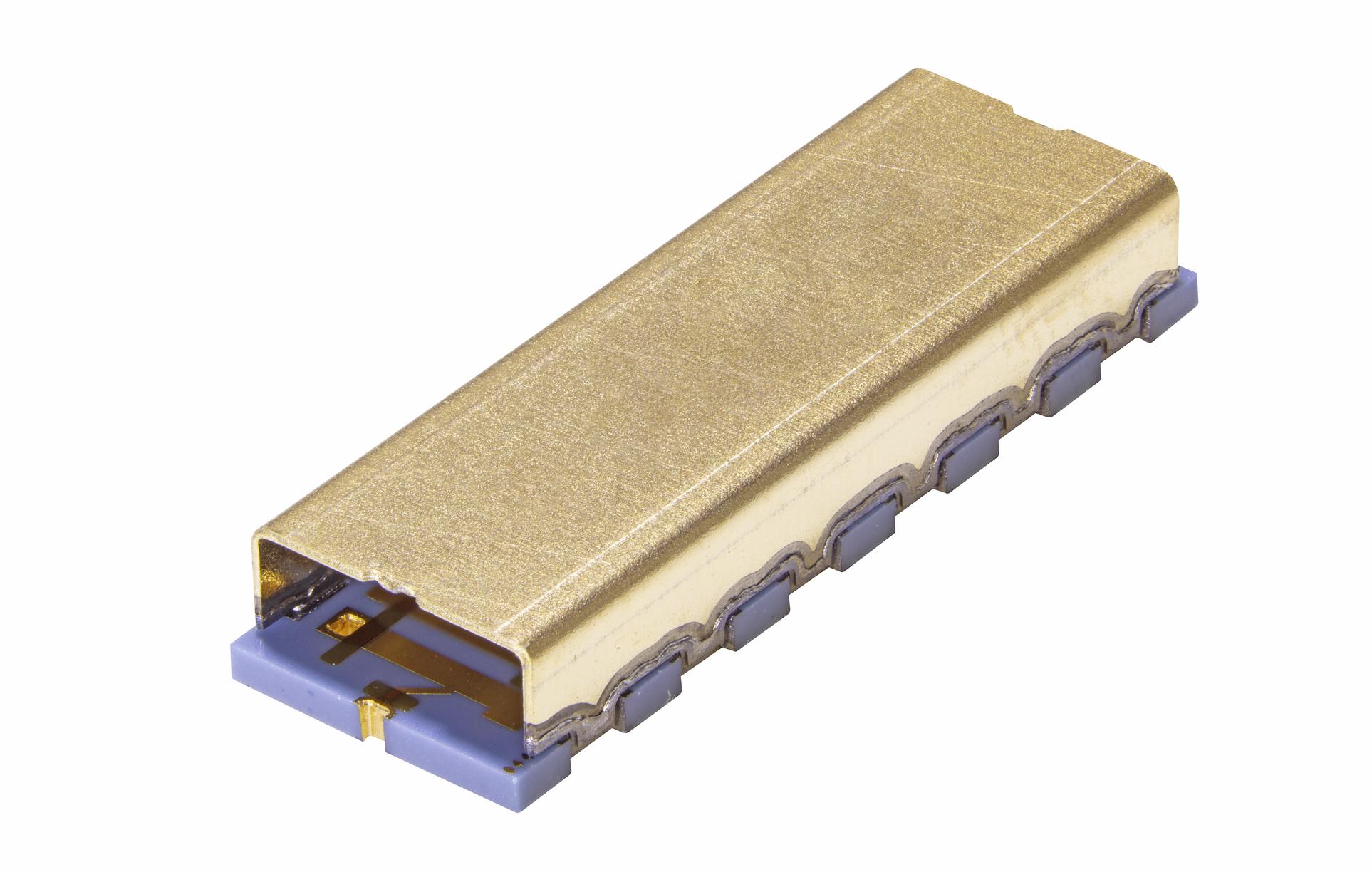

The Knowles B192NB2S is a Ka-band surface-mount bandpass filter centered at 19.2 GHz with a 4 GHz bandwidth and 4.25 dB insertion loss. Built on low-loss, temperature-stable ceramic material, it delivers consistent performance in compact, fully shielded form. This 50-ohm filter is ideal for downlink applications requiring stability and precision across wide operating temperatures.

Part Number: B192NB2S
Manufacturer: Knowles — DLI – Dielectric Laboratories
Filtering Technology: Ceramic Substrate
Center Frequency: 19200 MHz
Bandwidth: 4000 MHz
Insertion Loss TYP: 4 dB
Return Loss Typ: 12 dB
Low Side Rejection: 50 dB
Low Side Rejection: 16000 MHz
High Side Rejection: 50 dB
High Side Rejection: 22800 MHz
Package: SMT
Length: 11.43 mm
Width: 3.55 mm
Height: 2.1 mm

No Content Available

Technical Inquiry Request for B192NB2S RF Filter - Band Pass

Fields marked with * are required.

Product Specifications For B192NB2S RF Filter - Band Pass

Part Number: B192NB2S Manufacturer: DLI – Dielectric Laboratories, Inc. (Knowles) Product Description: RF Filter - Band Pass -- Ceramic Substrate, 19200MHz, 4000MHz, 4dB, 12dB, 50dB, 16000MHz, 50dB, 22800MHz, SMT, 11.43mm, 3.55mm, 2.1mm

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

10 - 24

$100.40

25 - 49

$95.20

50+

$82.67

Request a Pricing Quote for greater quantities
