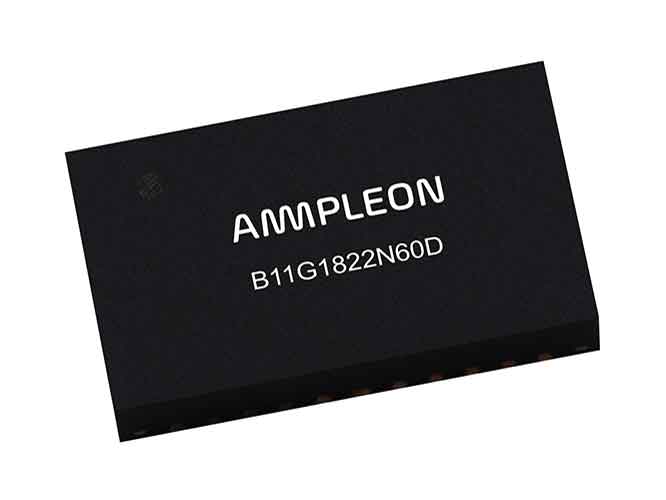

B11G1822N60DYZ

The B11G1822N60D is a dual section 2-stage fully integrated Doherty MMIC solution using Ampleon's state of the art LDMOS technology. The carrier and peaking device, input splitter, output combiner and pre-match are integrated in each section. This multiband device is perfectly suited as general purpose driver in the frequency range 1800 MHz to 2200 MHz.

Features and Benefits:

Integrated input splitter
Integrated output combiner
20 Ω output impedance thanks to integrated pre-match
High linearity
Designed for large RF and instantaneous bandwidth operation
Independent control of carrier and peaking bias
Integrated bias gate switch
Integrated ESD protection
Source impedance 50 Ω; high power gain

Applications:

Macrocell base station driver
Microcell base station
5G mMIMO
W-CDMA/LTE
Active antenna
General purpose applications
