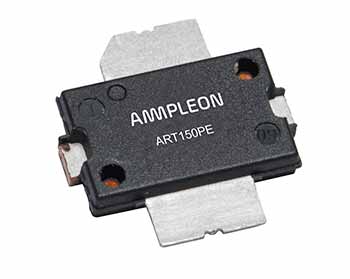

ART150PEXY

RF Power Transistor from Ampleon

RF Power Transistor, 0.001 to 0.65 GHz, 150 W, 31.2 dB, 65 V, TO270, LDMOS

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Ampleon's ART150PE is a 150 Watts LDMOS transistor in a cost-effective TO270 OMP package that uses the Advanced Rugged Technology process. It covers a wide range of applications in ISM, broadcast and communications.

Unmatched, this transistor has a frequency range of 1 to 650 MHz and, with its high breakdown voltage, is suitable for class E operation up to 53V.

- High breakdown voltage enables class E operation up to VDS = 53 V

- Qualified up to a maximum of VDS = 65 V

- Characterized from 30 V to 65 V to support a wide range of applications

- Integrated dual-sided ESD protection enables class C operation and complete switch off of the transistor.

- Excellent ruggedness with no device degradation.

- High efficiency.

- Excellent thermal stability.

- Designed for broadband operation between 1 and 650 MHz.

The 65V ART150 transistors perform well at lower supply voltages. Even though there is a power reduction with a reduced supply, these transistors maintain excellent efficiency, down to voltages as low as 13.8 Volts.

This device is also available in an OMP Gullwing package (ART150PEG) or in an air cavity ceramic package (ART150FE).

Part Number: ART150PEXY
Manufacturer: Ampleon
Frequency Min: 0.0001 GHz
Frequency Max: 0.65 GHz
Output Power: 150 W
Gain: 31.2 dB
% Typ Efficiency: 75.3
Supply Voltage: 65 V
Package: SOT1483
Process: LDMOS
Type: RF Power Discrete Transistors

No Content Available

Part Function	Part Number	Description
Complementary Product	ART150FEU Ampleon	RF Power Transistor, 0.001 to 0.65 GHz, 150 W, 31 dB, 65 V, SOT467C, LDMOS
Complementary Product	ART150PEGXY Ampleon	RF Power Transistor, 0.001 to 0.65 GHz, 150 W, 31.2 dB, 65 V, LDMOS
Complementary Product	ART150PEGZ Ampleon	RF Power Transistor, 0.001 to 0.65 GHz, 150 W, 31.2 dB, 65 V, LDMOS

Technical Inquiry Request for ART150PEXY RF Power Transistor

Fields marked with * are required.

Product Specifications For ART150PEXY RF Power Transistor

Part Number: ART150PEXY Manufacturer: Ampleon USA Inc. Product Description: RF Power Transistor, 0.001 to 0.65 GHz, 150 W, 31.2 dB, 65 V, TO270, LDMOS

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$47.51

10 - 24

$45.56

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
