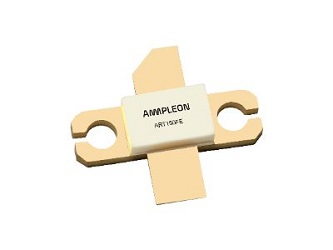

ART150FEU

RF Power Transistor from Ampleon

RF Power Transistor, 0.001 to 0.65 GHz, 150 W, 31 dB, 65 V, SOT467C, LDMOS

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

Based on Advanced Rugged Technology (ART), this 150 W LDMOS RF transistor has been designed to cover a wide range of applications for ISM, broadcast and communications. The unmatched transistor has a frequency range of 1 MHz to 650 MHz.

Features and benefits:

High breakdown voltage enables class E operation up to VDS = 50 V
Qualified up to a maximum of VDS = 65 V
Characterized from 30 V to 65 V to support a wide range of applications
Integrated dual sided ESD protection enables class C operation and complete switch off of the transistor
Excellent ruggedness with no device degradation
High efficiency
Excellent thermal stability
Designed for broadband operation

Applications:

Industrial, scientific and medical applications
Plasma generators
MRI systems
CO2 lasers
Particle accelerators
Defrosting

Broadcast
FM radio
VHF TV

Radar
Non cellular communications
UHF radar

Part Number: ART150FEU
Manufacturer: Ampleon
Frequency Min: 0.001 GHz
Frequency Max: 0.65 GHz
Output Power: 150 W
Gain: 31 dB
% Typ Efficiency: 72
Supply Voltage: 65 V
Package: SOT467C
Process: LDMOS
Type: RF Power Discrete Transistors

No Content Available

Part Function	Part Number	Description
Evaluation Board	ART150FE/RFPOWERDEMO Ampleon	Evaluation Board for ART150FE

Technical Inquiry Request for ART150FEU RF Power Transistor

Fields marked with * are required.

Product Specifications For ART150FEU RF Power Transistor

Part Number: ART150FEU Manufacturer: Ampleon USA Inc. Product Description: RF Power Transistor, 0.001 to 0.65 GHz, 150 W, 31 dB, 65 V, SOT467C, LDMOS

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

293

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$108.70

10 - 24

$104.23

Request a Pricing Quote for greater quantities
