Home>> Amplifier>> AKA-1310PSM

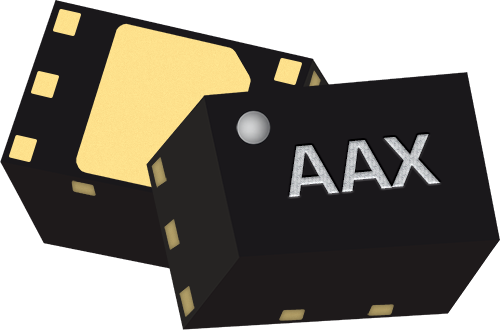

AKA-1310PSM

Surface Mount from Marki Microwave

Amplifier, Gain Block, 0 to 14 GHz, 13 dB, +14 dBm, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

The AKA-1310PSM is a low-cost, cascadable broadband InGaP HBT amplifier. This is a general-purpose gain block amplifier which provides high P1dB, high OIP3, and a very small form factor. The simple application circuit requires minimal external components, allowing it to be used in a variety of applications.

Part Number: AKA-1310PSM
Manufacturer: Marki Microwave
Type: Gain Block, Low Phase Noise
Frequency Min: 0 GHz
Frequency Max: 14 GHz
P1dB: 14 dBm
Gain: 13 dB
IP3: 28 dBm
Supply Voltage \ Vd Min: 4.5 V
Supply Voltage \ Vd Max: 4.7 V
Quiescent Current \ Id: 50 mA
Noise Figure: 5 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-AKA-1310P Marki Microwave	Evaluation Board for AKA-1310PSM
Complementary Product	AKA-1300D Marki Microwave	Amplifier, Gain Block, 0 to 14 GHz, 13 dB, +14 dBm, Chip
Complementary Product	AKA-1300PSM Marki Microwave	Amplifier, Gain Block, 0 to 14 GHz, 13 dB, +14 dBm, SMT
Complementary Product	AKA-1310D Marki Microwave	Amplifier, Gain Block, 0 to 14 GHz, 13 dB, +14 dBm, Chip
Complementary Product	AKA-1400D Marki Microwave	Amplifier, Gain Block, 0 to 14 GHz, 17 dB, +15 dBm, Chip
Complementary Product	AKA-1400PSM Marki Microwave	Amplifier, Gain Block, 0 to 14 GHz, 17 dB, +15 dBm, SMT
Complementary Product	AKA-1500D Marki Microwave	Amplifier, Gain Block, 0 to 14 GHz, 19 dB, +16 dBm, Chip
Complementary Product	AKA-1500PSM Marki Microwave	Amplifier, Gain Block, 0 to 14 GHz, 19 dB, +16 dBm, SMT

Technical Inquiry Request for AKA-1310PSM Amplifier

Fields marked with * are required.

Product Specifications For AKA-1310PSM Amplifier

Part Number: AKA-1310PSM Manufacturer: Marki Microwave Product Description: Amplifier, Gain Block, 0 to 14 GHz, 13 dB, +14 dBm, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$54.22

5 - 9

$45.18

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
