Home>> Amplifier>> ADM-8622PSM

ADM-8622PSM

Surface Mount from Marki Microwave

Amplifier, HDR, Gain Block, 0 to 10 GHz, 15.5 dB, +26 dBm, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

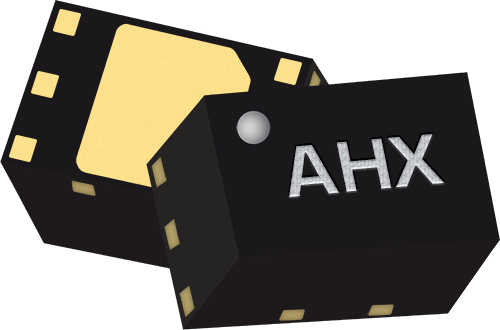

The ADM-8622PSM is a high-linearity low noise amplifier capable of providing 15.5 dB gain, 2 dB noise figure and +26 dBm OIP3 up to 10 GHz. The amplifier is suitable for use in RF front-ends requiring low noise, high gain and excellent signal fidelity. The ADM-8622PSM performs well down to DC and its low frequency performance is limited only by the frequency response of the input and output bias tees present in the application circuit. The ADM-8622PSM is available in a very compact 1.3x2mm DFN package.

Part Number: ADM-8622PSM
Manufacturer: Marki Microwave
Type: Gain Block
Frequency Min: 0 GHz
Frequency Max: 10 GHz
P1dB: 13.5 dBm
Psat: 15 dBm
Gain: 15.5 dB
IP3: 26 dBm
Supply Voltage \ Vd Min: 2 V
Supply Voltage \ Vd Max: 4 V
Quiescent Current \ Id: 40 mA
Noise Figure: 2 dB
Return Loss Input: 16 dB
Return Loss Output: 24 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-ADM-8622P Marki Microwave	Evaluation Board for ADM-8622PSM

Technical Inquiry Request for ADM-8622PSM Amplifier

Fields marked with * are required.

Product Specifications For ADM-8622PSM Amplifier

Part Number: ADM-8622PSM Manufacturer: Marki Microwave Product Description: Amplifier, HDR, Gain Block, 0 to 10 GHz, 15.5 dB, +26 dBm, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 9

$29.20

10 - 24

$26.86

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
