Home>> Amplifier>> ADM-8536PSM

ADM-8536PSM

Surface Mount from Marki Microwave

Amplifier, HDR, Gain Block, 2 to 20 GHz, 10 dB, +25 dBm, SMT

Status: Featured | Data Sheet:

| RoHS Compliance: Rohs Compliant

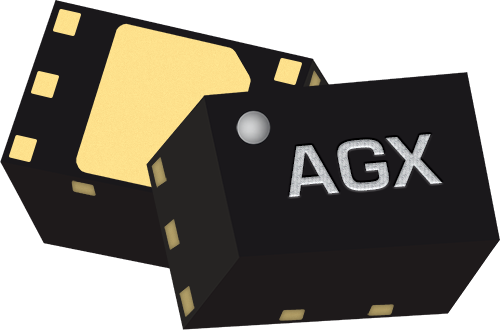

The ADM-8536PSM is the world's smallest 2-20 GHz high linearity, low noise amplifier solution, featuring 10.5 dB gain, +25 dBm OIP3 and 2.5 dB noise figure, making it suitable for use in RF front-ends. The amplifier is designed for ease of use due to its internal bias network, DC blocking and RF matching. The ADM-8536PSM's compact 1.3 x 2 mm DFN package and low power consumption make it an ideal choice for low SWaP applications.

Part Number: ADM-8536PSM
Manufacturer: Marki Microwave
Type: Gain Block
Frequency Min: 2 GHz
Frequency Max: 20 GHz
P1dB: 13 dBm
Psat: 14 dBm
Gain: 10 dB
IP3: 25 dBm
Supply Voltage \ Vd Min: 3 V
Supply Voltage \ Vd Max: 6 V
Quiescent Current \ Id: 41 mA
Noise Figure: 2.5 dB
Return Loss Input: 15 dB
Return Loss Output: 17 dB

No Content Available

Part Function	Part Number	Description
Evaluation Board	EVB-ADM-8536P Marki Microwave	Evaluation Board for ADM-8536PSM

Technical Inquiry Request for ADM-8536PSM Amplifier

Fields marked with * are required.

Product Specifications For ADM-8536PSM Amplifier

Part Number: ADM-8536PSM Manufacturer: Marki Microwave Product Description: Amplifier, HDR, Gain Block, 2 to 20 GHz, 10 dB, +25 dBm, SMT

Design Information

* Project:

* Application:

Production Date:

Additional Requirements:

Contact Information

* Email Address:

* Phone Number:

*First Name:

* Last Name:

* Company Function:

* Company:

Job Title:

* Country:

* Zip / Postal Code:

* City:

* State or Province:

Availability

In Stock

Need products sooner?

Request a Delivery Quote

Pricing

Quantity

Price

1 - 4

$115.90

5 - 9

$96.58

Request a Pricing Quote for greater quantities

Product Notices

No Current Notices
