Part number A10665 Product Type RF Filter - Band Pass from Manufacturer Akoustis

WiFi 6E & 7 tri-band routers, access points and LTE/LAA Small Cells

RF Filter - Band Pass from Akoustis

Filter, BAW, 6535 MHz, 1180 MHz BW

Status: Discontinued | Datasheet: Request Data Sheet | RoHS Compliance: Rohs Compliant

6.5 GHz WiFi 6E & 7 Coexistence BAW Filter

Akoustis’ A10665 is a high-performance, ultra-wide bandwidth BAW RF Filter for use in WiFi 6E & 7
applications covering U-NII-5 thru U-NII-8 bands. A10665 utilizes Akoustis’ patented, XBAW® technology
which provides leading RF filter performance. This BAW RF filter provides low insertion loss and meets the
stringent rejection requirements enabling coexistence with U-NII-1 thru 3. This device exhibits high-power
handling capabilities necessary for demanding power requirements of the latest WiFi 6E & 7 standards.
A10665 uses standard laminate packaging and is compatible with high volume, lead-free SMT soldering processes

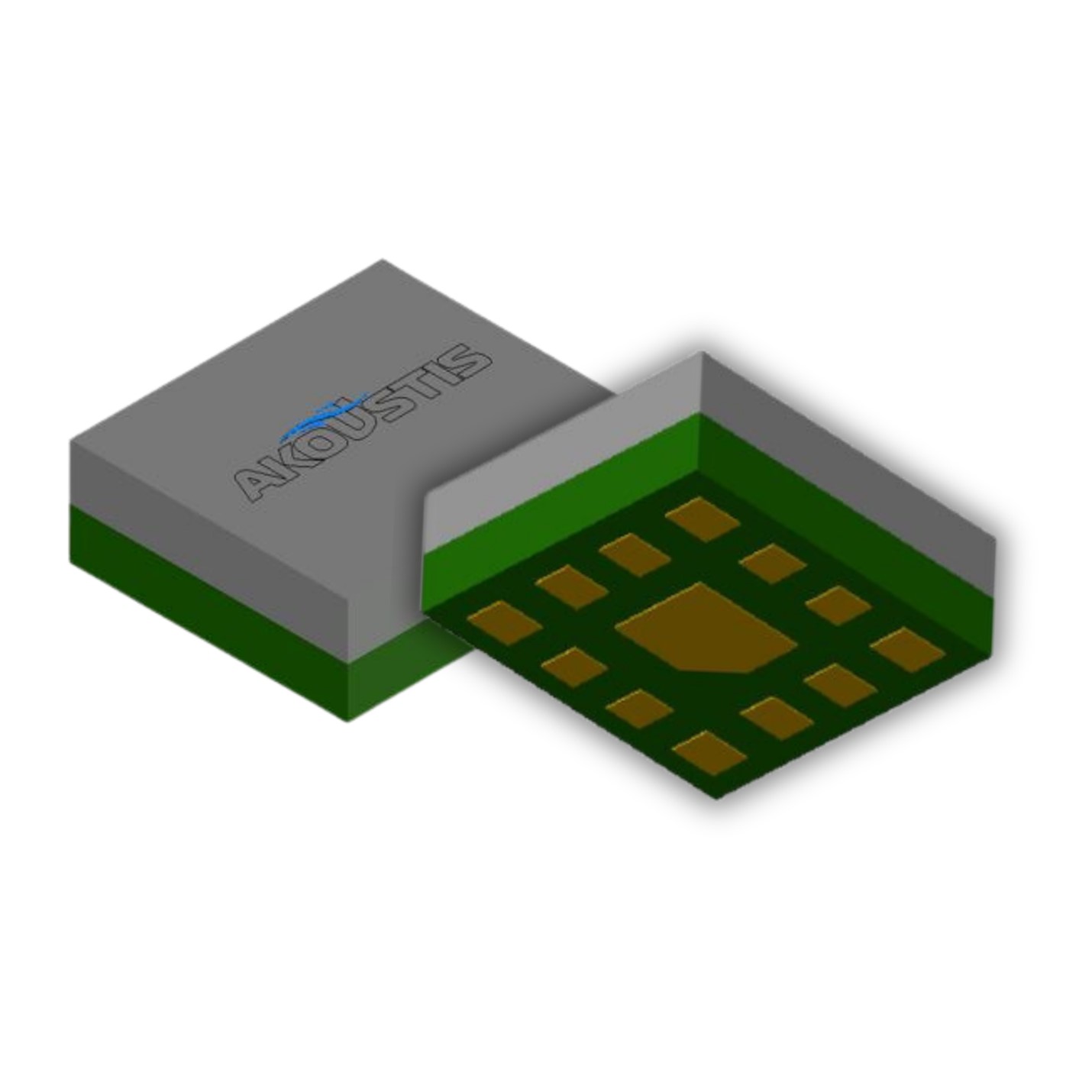

• Small form factor 1.6mm x 1.8mm x 0.55mm
• Single-ended Tx/Rx ports.
• Ultra-wide passband covering 1180MHz
• High rejection enables coexistence with adjacent WiFi UNII bands
• High power rating, maximum TBD
• Low insertion loss bandpass filter
• Performance over -40 C to +85C
• RoHS compliant, Pb-free package

Part Number: A10665
Manufacturer: Akoustis
Filtering Technology: BAW
Center Frequency: 6535 MHz
Bandwidth: 1180 MHz
Insertion Loss TYP: 3.2 dB
Return Loss Typ: 14 dB
Low Side Rejection: 48 dB
Low Side Rejection: 5835 MHz
High Side Rejection: 25 dB
High Side Rejection: 8500 MHz
Package: SMT
Length: 1.8 mm
Width: 1.6 mm
Height: 0.6 mm

No Content Available

Part Function	Part Number	Description
Evaluation Board	A10665 EVB Akoustis	Evaluation Board for A10665
