Home>> Clock Synthesizer>> 8V97003NLGI

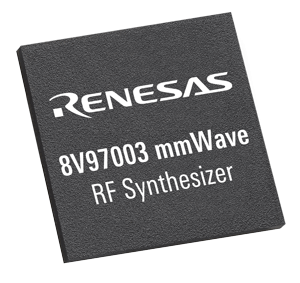

8V97003NLGI

Clock Synthesizer from Renesas

187.5M TO 18G RF/UWAVE SYNTHESIZER

Status: Standard | Data Sheet:

| RoHS Compliance: Rohs Compliant

The 8V97003 delivers the industry’s best combination of wide frequency range (171.875 MHz to 18 GHz), ultra-low output phase noise (-60.6dBc at 20 kHz to 100 MHz at 6 GHz) and high output power over its entire frequency range. Wide frequency range enables customers to use a single 8V97003 in place of multiple synthesizer modules reducing solution footprint and cost. High output power eliminated the need for external driver further reducing complexity and overall power consumption without compromising performances. It is ideal as a local oscillator (LO) for mmWave and beamforming, or a precision reference clock for a high-speed data converter in numerous applications such as test and measurements, optical networking, and data acquisition.

Features

Output frequency range: 171.875.5MHz to 18GHz
Ultra-low phase noise VCO
- -60.6dBc (35fs RMS) integrated phase jitter from 20kHz to 100MHz at 6GHz
Figure of Merit: -236dBc/Hz
Input reference frequency: 10MHz to 1GHz (LVPECL, LVDS); 10MHz to 250MHz (LVCMOS)
Fractional-N synthesizer and integer-N synthesizer
32-bit of fractional and modulus resolution
Phase frequency detector (PFD) operation up to 500MHz (Integer mode) or 250MHz (Fractional mode)

Programmable RF output power levels
-40°C to +95°C ambient temperature range; and up to +105°C case temperature
3.3V single power supply operation
Integrated LDOs for good power supply noise immunity
7 × 7 mm 48-VFQFN package
SPI interface is compatible with 1.8V logic and tolerant to 3.3V

Part Number: 8V97003NLGI
Manufacturer: Renesas
